Insta InstaRemote #

Model InstaRemote
Vendor Insta
Description ZigBee Light Link wall/handheld transmitter
Exposes action, linkquality
Picture Insta InstaRemote
White-label Gira 2430-100, Gira 2435-10, Jung ZLLCD5004M, Jung ZLLLS5004M, Jung ZLLA5004M, Jung ZLLHS4

Notes #

Transmitters Loosing Connection in ZigBee 3 Networks #

With their factory firmware, the transmitters loose network connection after a few hours when ZigBee 3 devices are present in the network (which is a pretty much standard nowadays). For the Jung wall and handheld transmitters there is a firmware update available that fixes this problem (see OTA updates below), but in turn decreases battery lifetime down to a few months.

Unfortunately Gira seems to have dropped support for their ZigBee transmitters completely and does not offer any firmware updates at all. For the Gira handheld transmitter the Jung update seems to work (and to fix the problem), but for the Gira wall transmitter this is not the case (it only has 6 buttons instead of 8 on the Jung wall transmitter and would therefore need a different firmware). There does not seem to be real solution for this problem rendering the Gira wall transmitters pretty much useless nowadays.

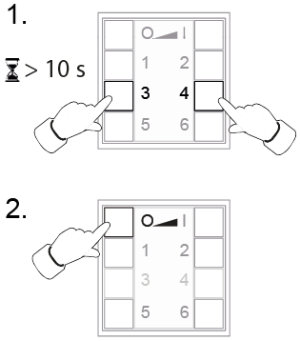

Factory Reset (8-Button Devices) #

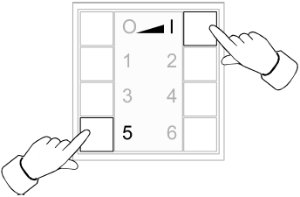

Join Network (8-Button Devices) #

OTA #

For the device to ask for/accept OTA updates, it needs to be in “programming mode” (same mode as for joining a network, see above). In case the device does still not accept updates or seems to be stuck somehow, it may help to do a factory reset, join the network again and then again enter programming mode before starting the OTA update again.

Device type specific configuration #

How to use device type specific configuration

OTA updates #

This device supports OTA updates, for more information see OTA updates.

Exposes #

Action (enum) #

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It’s not possible to read (/get) or write (/set) this value. The possible values are: select_*, on, off, down, up, stop.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.action }}"
    icon: "mdi:gesture-double-tap"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    icon: "mdi:signal"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    icon: "mdi:update"
    value_template: "{{ value_json['update']['state'] }}"

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_on: true
    payload_off: false
    value_template: "{{ value_json.update_available}}"
