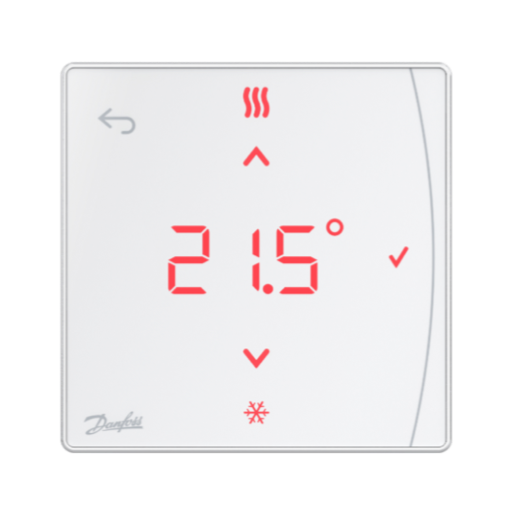

Danfoss Icon2

Model	Icon2
Vendor	Danfoss
Description	Icon2 Main Controller, Room Thermostat or Sensor
Exposes	battery, climate (occupied_heating_setpoint, local_temperature, system_mode, running_state), min_heat_setpoint_limit, max_heat_setpoint_limit, setpoint_change_source, output_status, room_status_code, room_floor_sensor_mode, floor_min_setpoint, floor_max_setpoint, schedule_type_used, icon2_pre_heat, icon2_pre_heat_status, temperature, humidity, system_status_code, heat_supply_request, system_status_water, multimaster_role, icon_application, icon_forced_heating_cooling

Options

How to use device type specific configuration

• temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.

• temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

• humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.

• humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

• thermostat_unit: Controls the temperature unit of the thermostat (default celsius). The value must be one of celsius, fahrenheit

Exposes

Battery (numeric, 1 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_1 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (1 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_1": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_1": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_1": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_1": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_1": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 1 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_1": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 1 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_1": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 1 endpoint)

Value can be found in the published state on the setpoint_change_source_1 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 1 endpoint)

Actuator status. Value can be found in the published state on the output_status_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_1": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 1 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_1": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 1 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_1": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 1 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_1": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 1 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_1": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 1 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_1": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 1 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_1": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 1 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_1": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 1 endpoint)

Floor temperature. Value can be found in the published state on the temperature_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_1": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 1 endpoint)

Humidity. Value can be found in the published state on the humidity_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_1": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 2 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_2 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (2 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_2": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_2": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_2": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_2": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_2": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 2 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_2": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 2 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_2": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 2 endpoint)

Value can be found in the published state on the setpoint_change_source_2 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 2 endpoint)

Actuator status. Value can be found in the published state on the output_status_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_2": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 2 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_2": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 2 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_2": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 2 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_2": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 2 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_2": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 2 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_2": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 2 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_2": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 2 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_2": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 2 endpoint)

Floor temperature. Value can be found in the published state on the temperature_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_2": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 2 endpoint)

Humidity. Value can be found in the published state on the humidity_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_2": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 3 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_3 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (3 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_3": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_3": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_3": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_3": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_3": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 3 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_3": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_3": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 3 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_3": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_3": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 3 endpoint)

Value can be found in the published state on the setpoint_change_source_3 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 3 endpoint)

Actuator status. Value can be found in the published state on the output_status_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_3": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 3 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_3": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 3 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_3": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 3 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_3": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_3": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 3 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_3": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_3": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 3 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_3": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 3 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_3": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 3 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_3": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 3 endpoint)

Floor temperature. Value can be found in the published state on the temperature_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_3": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 3 endpoint)

Humidity. Value can be found in the published state on the humidity_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_3": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 4 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_4 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (4 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_4": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_4": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_4": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_4": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_4": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 4 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_4": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_4": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 4 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_4": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_4": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 4 endpoint)

Value can be found in the published state on the setpoint_change_source_4 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 4 endpoint)

Actuator status. Value can be found in the published state on the output_status_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_4": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 4 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_4": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 4 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_4": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 4 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_4": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_4": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 4 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_4": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_4": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 4 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_4": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 4 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_4": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 4 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_4": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 4 endpoint)

Floor temperature. Value can be found in the published state on the temperature_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_4": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 4 endpoint)

Humidity. Value can be found in the published state on the humidity_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_4": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 5 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_5 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (5 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_5": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_5": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_5": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_5": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_5": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 5 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_5": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_5": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 5 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_5": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_5": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 5 endpoint)

Value can be found in the published state on the setpoint_change_source_5 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 5 endpoint)

Actuator status. Value can be found in the published state on the output_status_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_5": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 5 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_5": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 5 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_5": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 5 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_5": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_5": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 5 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_5": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_5": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 5 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_5": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 5 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_5": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 5 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_5": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 5 endpoint)

Floor temperature. Value can be found in the published state on the temperature_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_5": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 5 endpoint)

Humidity. Value can be found in the published state on the humidity_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_5": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 6 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_6 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (6 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_6": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_6": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_6": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_6": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_6": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 6 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_6 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_6": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_6": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 6 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_6 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_6": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_6": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 6 endpoint)

Value can be found in the published state on the setpoint_change_source_6 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 6 endpoint)

Actuator status. Value can be found in the published state on the output_status_6 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_6": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 6 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_6 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_6": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 6 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_6 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_6": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 6 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_6 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_6": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_6": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 6 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_6 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_6": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_6": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 6 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_6 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_6": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 6 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_6 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_6": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 6 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_6 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_6": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 6 endpoint)

Floor temperature. Value can be found in the published state on the temperature_6 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_6": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 6 endpoint)

Humidity. Value can be found in the published state on the humidity_6 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_6": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 7 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_7 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (7 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_7": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_7": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_7": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_7": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_7": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 7 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_7": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_7": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 7 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_7": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_7": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 7 endpoint)

Value can be found in the published state on the setpoint_change_source_7 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 7 endpoint)

Actuator status. Value can be found in the published state on the output_status_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_7": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 7 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_7": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 7 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_7": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 7 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_7": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_7": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 7 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_7": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_7": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 7 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_7": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 7 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_7": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 7 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_7": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 7 endpoint)

Floor temperature. Value can be found in the published state on the temperature_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_7": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 7 endpoint)

Humidity. Value can be found in the published state on the humidity_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_7": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 8 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_8 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (8 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_8": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_8": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_8": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_8": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_8": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 8 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_8": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_8": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 8 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_8": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_8": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 8 endpoint)

Value can be found in the published state on the setpoint_change_source_8 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 8 endpoint)

Actuator status. Value can be found in the published state on the output_status_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_8": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 8 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_8": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 8 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_8": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 8 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_8": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_8": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 8 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_8": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_8": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 8 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_8": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 8 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_8": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 8 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_8": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 8 endpoint)

Floor temperature. Value can be found in the published state on the temperature_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_8": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 8 endpoint)

Humidity. Value can be found in the published state on the humidity_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_8": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 9 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_9 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (9 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_9": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_9": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_9": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_9": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_9": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 9 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_9": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_9": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 9 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_9": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_9": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 9 endpoint)

Value can be found in the published state on the setpoint_change_source_9 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 9 endpoint)

Actuator status. Value can be found in the published state on the output_status_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_9": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 9 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_9": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 9 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_9": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 9 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_9": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_9": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 9 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_9": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_9": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 9 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_9": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 9 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_9": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 9 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_9": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 9 endpoint)

Floor temperature. Value can be found in the published state on the temperature_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_9": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 9 endpoint)

Humidity. Value can be found in the published state on the humidity_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_9": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 10 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_10 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (10 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_10": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_10": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_10": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_10": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_10": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 10 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_10": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_10": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 10 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_10": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_10": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 10 endpoint)

Value can be found in the published state on the setpoint_change_source_10 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 10 endpoint)

Actuator status. Value can be found in the published state on the output_status_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_10": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 10 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_10": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 10 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_10": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 10 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_10": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_10": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 10 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_10": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_10": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 10 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_10": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 10 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_10": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 10 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_10": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 10 endpoint)

Floor temperature. Value can be found in the published state on the temperature_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_10": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 10 endpoint)

Humidity. Value can be found in the published state on the humidity_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_10": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 11 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_11 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (11 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_11": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_11": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_11": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_11": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_11": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 11 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_11": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_11": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 11 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_11": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_11": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 11 endpoint)

Value can be found in the published state on the setpoint_change_source_11 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 11 endpoint)

Actuator status. Value can be found in the published state on the output_status_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_11": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 11 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_11": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 11 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_11": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 11 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_11": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_11": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 11 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_11": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_11": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 11 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_11": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 11 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_11": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 11 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_11": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 11 endpoint)

Floor temperature. Value can be found in the published state on the temperature_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_11": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 11 endpoint)

Humidity. Value can be found in the published state on the humidity_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_11": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 12 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_12 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (12 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_12": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_12": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_12": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_12": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_12": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 12 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_12": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_12": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 12 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_12": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_12": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 12 endpoint)

Value can be found in the published state on the setpoint_change_source_12 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 12 endpoint)

Actuator status. Value can be found in the published state on the output_status_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_12": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 12 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_12": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 12 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_12": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 12 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_12": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_12": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 12 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_12": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_12": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 12 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_12": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 12 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_12": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 12 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_12": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 12 endpoint)

Floor temperature. Value can be found in the published state on the temperature_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_12": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 12 endpoint)

Humidity. Value can be found in the published state on the humidity_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_12": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 13 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_13 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (13 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_13": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_13": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_13": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_13": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_13": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 13 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_13": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_13": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 13 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_13": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_13": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 13 endpoint)

Value can be found in the published state on the setpoint_change_source_13 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 13 endpoint)

Actuator status. Value can be found in the published state on the output_status_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_13": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 13 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_13": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 13 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_13": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 13 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_13": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_13": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 13 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_13": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_13": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 13 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_13": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 13 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_13": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 13 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_13": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 13 endpoint)

Floor temperature. Value can be found in the published state on the temperature_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_13": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 13 endpoint)

Humidity. Value can be found in the published state on the humidity_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_13": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 14 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_14 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (14 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_14": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_14": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_14": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_14": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_14": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 14 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_14": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_14": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 14 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_14": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_14": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 14 endpoint)

Value can be found in the published state on the setpoint_change_source_14 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 14 endpoint)

Actuator status. Value can be found in the published state on the output_status_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_14": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 14 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_14": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 14 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_14": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 14 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_14": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_14": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 14 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_14": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_14": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 14 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_14": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 14 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_14": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 14 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_14": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 14 endpoint)

Floor temperature. Value can be found in the published state on the temperature_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_14": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 14 endpoint)

Humidity. Value can be found in the published state on the humidity_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_14": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Battery (numeric, 15 endpoint)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery_15 property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Climate (15 endpoint)

This climate device supports the following features: occupied_heating_setpoint, local_temperature, system_mode, running_state.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint_15": VALUE} where VALUE is the °C between 5 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint_15": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature_15": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode_15": VALUE} where VALUE is one of: heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode_15": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.

Min heat setpoint limit (numeric, 15 endpoint)

Min temperature limit set on the device. Value can be found in the published state on the min_heat_setpoint_limit_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit_15": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit_15": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Max heat setpoint limit (numeric, 15 endpoint)

Max temperature limit set on the device. Value can be found in the published state on the max_heat_setpoint_limit_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit_15": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit_15": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.

Setpoint change source (enum, 15 endpoint)

Value can be found in the published state on the setpoint_change_source_15 property. It's not possible to read (/get) or write (/set) this value. The possible values are: manual, schedule, externally.

Output status (enum, 15 endpoint)

Actuator status. Value can be found in the published state on the output_status_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"output_status_15": ""}. It's not possible to write (/set) this value. The possible values are: inactive, active.

Room status code (enum, 15 endpoint)

Thermostat status. Value can be found in the published state on the room_status_code_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_status_code_15": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_rt, rt_touch_error, floor_sensor_short_circuit, floor_sensor_disconnected.

Room floor sensor mode (enum, 15 endpoint)

Floor sensor mode. Value can be found in the published state on the room_floor_sensor_mode_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"room_floor_sensor_mode_15": ""}. It's not possible to write (/set) this value. The possible values are: comfort, floor_only, dual_mode.

Floor min setpoint (numeric, 15 endpoint)

Min floor temperature. Value can be found in the published state on the floor_min_setpoint_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_min_setpoint_15": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_min_setpoint_15": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Floor max setpoint (numeric, 15 endpoint)

Max floor temperature. Value can be found in the published state on the floor_max_setpoint_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"floor_max_setpoint_15": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"floor_max_setpoint_15": NEW_VALUE}. The minimal value is 18 and the maximum value is 35. The unit of this value is °C.

Schedule type used (enum, 15 endpoint)

Danfoss schedule mode. Value can be found in the published state on the schedule_type_used_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"schedule_type_used_15": ""}. It's not possible to write (/set) this value. The possible values are: regular_schedule_selected, vacation_schedule_selected.

Icon2 pre heat (enum, 15 endpoint)

Danfoss pre heat control. Value can be found in the published state on the icon2_pre_heat_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_15": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Icon2 pre heat status (enum, 15 endpoint)

Danfoss pre heat status. Value can be found in the published state on the icon2_pre_heat_status_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon2_pre_heat_status_15": ""}. It's not possible to write (/set) this value. The possible values are: disable, enable.

Temperature (numeric, 15 endpoint)

Floor temperature. Value can be found in the published state on the temperature_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_15": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 15 endpoint)

Humidity. Value can be found in the published state on the humidity_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_15": ""}. It's not possible to write (/set) this value. The unit of this value is %.

System status code (enum, 232 endpoint)

Main Controller Status. Value can be found in the published state on the system_status_code_232 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_status_code_232": ""}. It's not possible to write (/set) this value. The possible values are: no_error, missing_expansion_board, missing_radio_module, missing_command_module, missing_master_rail, missing_slave_rail_no_1, missing_slave_rail_no_2, pt1000_input_short_circuit, pt1000_input_open_circuit, error_on_one_or_more_output.

Heat supply request (enum, 232 endpoint)

Danfoss heat supply request. Value can be found in the published state on the heat_supply_request_232 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"heat_supply_request_232": ""}. It's not possible to write (/set) this value. The possible values are: none, heat_supply_request.

System status water (enum, 232 endpoint)

Main Controller Water Status. Value can be found in the published state on the system_status_water_232 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_status_water_232": ""}. It's not possible to write (/set) this value. The possible values are: hot_water_flow_in_pipes, cool_water_flow_in_pipes.

Multimaster role (enum, 232 endpoint)

Main Controller Role. Value can be found in the published state on the multimaster_role_232 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"multimaster_role_232": ""}. It's not possible to write (/set) this value. The possible values are: invalid_unused, master, slave_1, slave_2.

Icon application (enum, 232 endpoint)

Main Controller application. Value can be found in the published state on the icon_application_232 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon_application_232": ""}. It's not possible to write (/set) this value. The possible values are: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20.

Icon forced heating cooling (enum, 232 endpoint)

Main Controller application. Value can be found in the published state on the icon_forced_heating_cooling_232 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"icon_forced_heating_cooling_232": ""}. It's not possible to write (/set) this value. The possible values are: force_heating, force_cooling, none.
