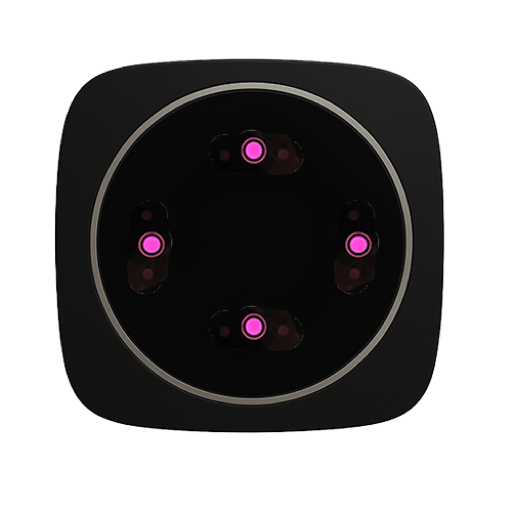

HS-SW400ZB-VNM

Model	HS-SW400ZB-VNM
Vendor	VSmart
Description	Wall switch 4 gang
Exposes	switch (state), led_indicator_color_on, led_indicator_color_off, vibration_intensity, time_periods, morning_led_intensity, evening_led_intensity, night_led_intensity, led_brightness_levels

Notes

Pairing

Put the device in pairing mode by pressing and holding the button on the device for 5 seconds until the LED indicator flashes rapidly.

Reset

To reset the device, press and hold the button for 10 seconds until the LED indicator flashes 3 times.

Installation

• Turn off power at the circuit breaker before installation
• Remove existing switch and connect wires according to the wiring diagram
• Ensure proper grounding
• Maximum load per channel: 10A resistive, 6A inductive

Multi-Endpoint Control

This device supports 4 independent switches:

• Switch 1: Controls first electrical load
• Switch 2: Controls second electrical load
• Switch 3: Controls third electrical load
• Switch 4: Controls fourth electrical load
• Each switch can be controlled independently via MQTT

LED Indicator Features

• ledIndicatorColorOn: Set LED color when switch is ON (hex format: #RRGGBB)
• ledIndicatorColorOff: Set LED color when switch is OFF (hex format: #RRGGBB)
• morningLedIntensity: LED intensity for morning period (0-100%)
• eveningLedIntensity: LED intensity for evening period (0-100%)
• nightLedIntensity: LED intensity for night period (0-100%)
• ledBrightnessLevels: Configure low/medium/high brightness levels

Vibration Feedback

• vibrationIntensity: Button vibration intensity (0-100%)
• Provides tactile feedback when button is pressed

Time Period Settings

• timePeriods: Configure morning, evening, and night periods
• Morning must start before evening, evening must start before night
• LED behavior changes based on time periods
