VSmart HS-SEOC00ZB-VNM

ModelHS-SEOC00ZB-VNM
VendorVSmart
DescriptionOccupancy sensor
Exposesbattery, occupancy

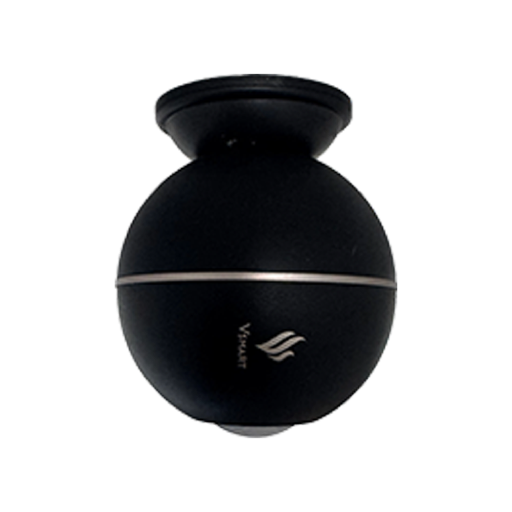

PictureVSmart HS-SEOC00ZB-VNM

Notes

Pairing

Put the device in pairing mode by pressing and holding the button on the device for 3 seconds until the LED indicator flashes rapidly.

Reset

To reset the device, press and hold the button for 10 seconds until the LED indicator flashes 3 times.

Installation

  • Install the sensor on the ceiling or wall
  • Ensure the sensor has a clear view of the area to be monitored
  • Recommended mounting height: 2.5-3 meters
  • Avoid mounting near air conditioning vents or heating sources

Options

How to use device type specific configuration

  • no_occupancy_since: Sends a message after the last time no occupancy (occupancy: false) was detected. When setting this for example to [10, 60] a {"no_occupancy_since": 10} will be send after 10 seconds and a {"no_occupancy_since": 60} after 60 seconds. The value must be a list of numbers.

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Occupancy (binary)

Indicates whether the device detected occupancy. Value can be found in the published state on the occupancy property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupancy": ""}. It's not possible to write (/set) this value. If value equals true occupancy is ON, if false OFF.
