Xiaomi GZCGQ01LM
Model | GZCGQ01LM |
Vendor | Xiaomi |
Description | MiJia light intensity sensor |
Exposes | battery, voltage, illuminance, illuminance_lux, power_outage_count, linkquality |

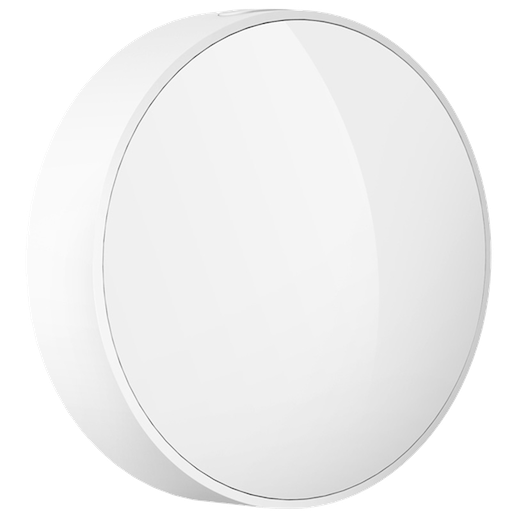

Picture | ![]() |
White-label | Xiaomi YTC4043GL |
Notes
Adapter firmware
In order for this device to work (fully), at least the following firmware is required on your adapter:
- CC2530/CC2531:
20211115
open in new window - CC1352/CC2652:
20211114
open in new window - CC2538:
20211222
open in new window - Conbee II:
0x26720700
open in new window
Note that if you have already paired the device you will need to repair it after upgrading your adapter firmware.
Pairing
Press and hold the reset button on the device for +- 5 seconds (until the blue light starts blinking). After this the device will automatically join. If this doesn't work, try with a single short button press.
Options
How to use device type specific configuration
illuminance_precision
: Number of digits after decimal point for illuminance, takes into effect on next report of device. The value must be a number with a minimum value of0
and with a with a maximum value of3
illuminance_calibration
: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.illuminance_lux_precision
: Number of digits after decimal point for illuminance_lux, takes into effect on next report of device. The value must be a number with a minimum value of0
and with a with a maximum value of3
illuminance_lux_calibration
: Calibrates the illuminance_lux value (percentual offset), takes into effect on next report of device. The value must be a number.
Exposes
Battery (numeric)
Remaining battery in %. Value can be found in the published state on the battery
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Voltage (numeric)
Voltage of the battery in millivolts. Value can be found in the published state on the voltage
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is mV
.
Illuminance (numeric)
Raw measured illuminance. Value can be found in the published state on the illuminance
property. It's not possible to read (/get
) or write (/set
) this value.
Illuminance_lux (numeric)
Measured illuminance in lux. Value can be found in the published state on the illuminance_lux
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is lx
.
Power_outage_count (numeric)
Number of power outages. Value can be found in the published state on the power_outage_count
property. It's not possible to read (/get
) or write (/set
) this value.
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 255
. The unit of this value is lqi
.
