Belkin F7C033 #

Model F7C033
Vendor Belkin
Description WeMo smart LED bulb
Supports on/off, brightness

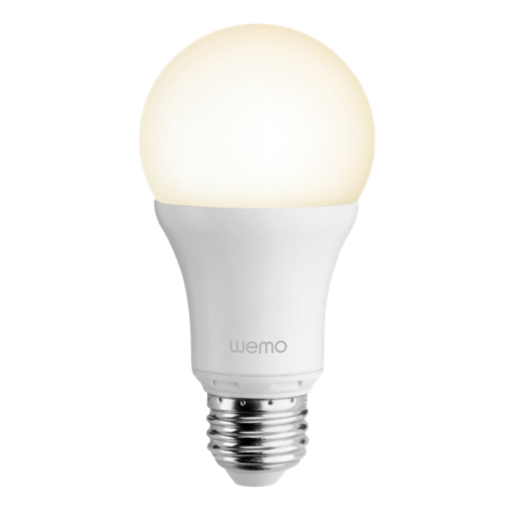

Picture Belkin F7C033

Notes #

Pairing #

Resetting or Restoring the Wemo® Smart LED Bulb, F7C033

Device type specific configuration #

How to use device type specific configuration

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

light:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    brightness: true
    schema: "json"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    brightness_scale: 254

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    icon: "mdi:signal"
    unit_of_measurement: "lqi"
    value_template: "{{ value_json.linkquality }}"
