ENGO EONE
Model | EONE |
Vendor | ENGO |
Description | Smart thermostat |
Exposes | climate (current_heating_setpoint, local_temperature, local_temperature_calibration, system_mode, running_state, preset), max_temperature, min_temperature, humidity, battery, child_lock, sensor_choose, brightness, control_algorithm, frost_set, holiday_temp_set, holiday_days_set, valve_protection, warm_floor, sensor_error, schedule_monday, schedule_tuesday, schedule_wednesday, schedule_thursday, schedule_friday, schedule_saturday, schedule_sunday |

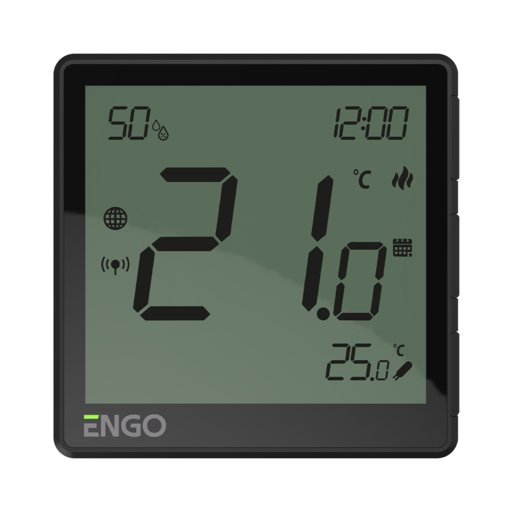

Picture | ![]() |
Options
How to use device type specific configuration
expose_device_state
: Expose device power state as a separate property when enabled. The value must betrue
orfalse
humidity_calibration
: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.humidity_precision
: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0
and with a with a maximum value of3
Exposes
Climate
This climate device supports the following features: current_heating_setpoint
, local_temperature
, local_temperature_calibration
, system_mode
, running_state
, preset
.
current_heating_setpoint
: Temperature setpoint. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"current_heating_setpoint": VALUE}
whereVALUE
is the °C between5
and45
. Reading (/get
) this attribute is not possible.local_temperature
: Current temperature measured on the device (in °C). Reading (/get
) this attribute is not possible.system_mode
: Mode of this device. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"system_mode": VALUE}
whereVALUE
is one of:off
,heat
,cool
. Reading (/get
) this attribute is not possible.preset
: Mode of this device (similar to system_mode). To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"preset": VALUE}
whereVALUE
is one of:manual
,schedule
,holiday
,temporary
,occupancy_off
,frost
. Reading (/get
) this attribute is not possible.running_state
: The current running state. Possible values are:idle
,heat
,cool
. Reading (/get
) this attribute is not possible.local_temperature_calibration
: Offset to add/subtract to the local temperature. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"local_temperature_calibration": VALUE}.
The minimal value is-3.5
and the maximum value is3.5
with a step size of0.5
.
Max temperature (numeric)
Maximum temperature. Value can be found in the published state on the max_temperature
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"max_temperature": NEW_VALUE}
. The minimal value is 5
and the maximum value is 45
. The unit of this value is °C
.
Min temperature (numeric)
Minimum temperature. Value can be found in the published state on the min_temperature
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"min_temperature": NEW_VALUE}
. The minimal value is 5
and the maximum value is 45
. The unit of this value is °C
.
Humidity (numeric)
Measured relative humidity. Value can be found in the published state on the humidity
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is %
.
Battery (numeric)
Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Child lock (binary)
Enables/disables physical input on the device. Value can be found in the published state on the child_lock
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"child_lock": NEW_VALUE}
. If value equals LOCK
child lock is ON, if UNLOCK
OFF.
Sensor choose (enum)
Temperature input source. Value can be found in the published state on the sensor_choose
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"sensor_choose": NEW_VALUE}
. The possible values are: internal
, floor
, external
, occupancy
.
Brightness (numeric)
Value can be found in the published state on the brightness
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"brightness": NEW_VALUE}
. The minimal value is 10
and the maximum value is 100
. The unit of this value is %
.
Control algorithm (enum)
Control algorithm used to regulate temperature. Value can be found in the published state on the control_algorithm
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"control_algorithm": NEW_VALUE}
. The possible values are: TPI_UFH
, TPI_RAD
, TPI_ELE
, HIS_02
, HIS_04
, HIS_06
, HIS_08
, HIS_10
, HIS_20
, HIS_30
, HIS_40
.
Frost set (numeric)
Frost protection setpoint. Value can be found in the published state on the frost_set
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"frost_set": NEW_VALUE}
. The minimal value is 5
and the maximum value is 17
. The unit of this value is °C
.
Holiday temp set (numeric)
Target temperature during holiday mode. Value can be found in the published state on the holiday_temp_set
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"holiday_temp_set": NEW_VALUE}
. The minimal value is 5
and the maximum value is 45
. The unit of this value is °C
.
Holiday days set (numeric)
Number of days for holiday. Value can be found in the published state on the holiday_days_set
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"holiday_days_set": NEW_VALUE}
. The minimal value is 1
and the maximum value is 30
. The unit of this value is day
.
Valve protection (binary)
Prevents valve blockage during long periods of inactivity.. Value can be found in the published state on the valve_protection
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"valve_protection": NEW_VALUE}
. If value equals ON
valve protection is ON, if OFF
OFF.
Warm floor (enum)
Automatically warms the floor every 60 minutes.. Value can be found in the published state on the warm_floor
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"warm_floor": NEW_VALUE}
. The possible values are: OFF
, 7_min
, 11_min
, 15_min
, 19_min
, 23_min
.
Sensor error (enum)
Sensor error indicator.. Value can be found in the published state on the sensor_error
property. It's not possible to read (/get
) or write (/set
) this value. The possible values are: Normal
, E1
, E2
.
Schedule monday (text)
Schedule for monday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_monday
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"schedule_monday": NEW_VALUE}
.
Schedule tuesday (text)
Schedule for tuesday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_tuesday
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"schedule_tuesday": NEW_VALUE}
.
Schedule wednesday (text)
Schedule for wednesday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_wednesday
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"schedule_wednesday": NEW_VALUE}
.
Schedule thursday (text)
Schedule for thursday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_thursday
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"schedule_thursday": NEW_VALUE}
.
Schedule friday (text)
Schedule for friday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_friday
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"schedule_friday": NEW_VALUE}
.
Schedule saturday (text)
Schedule for saturday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_saturday
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"schedule_saturday": NEW_VALUE}
.
Schedule sunday (text)
Schedule for sunday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_sunday
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"schedule_sunday": NEW_VALUE}
.
