EFEKTA EFEKTA_eAir_Monitor


Model	EFEKTA_eAir_Monitor
Vendor	EFEKTA

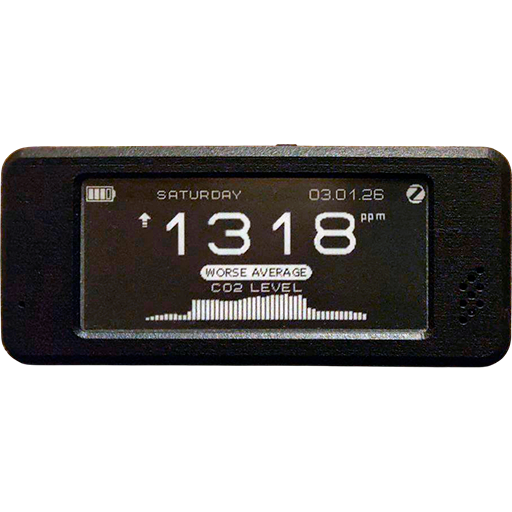

Description	Smart digital carbon dioxide detector with e-ink display.
Exposes	co2, battery, battery_low, lifetime, оperating_mode, invert_color, forced_recalibration, manual_forced_recalibration, automatic_self_calibration, factory_reset_co2

Options

How to use device type specific configuration

co2_calibration: Calibrates the co2 value (absolute offset), takes into effect on next report of device. The value must be a number.

Exposes

CO2 (numeric)

Measured value. Value can be found in the published state on the co2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is ppm.

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Battery low (binary)

Empty battery indicator. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Lifetime (numeric)

lifetime. Value can be found in the published state on the lifetime property. It's not possible to read (/get) or write (/set) this value. The unit of this value is Hours.

Оperating mode (enum)

Set data output on the display. Value can be found in the published state on the оperating_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"оperating_mode": NEW_VALUE}. The possible values are: Normal, Energy-saving.

Invert color (enum)

Set color mode. Value can be found in the published state on the invert_color property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"invert_color": NEW_VALUE}. The possible values are: BW, WB.

Forced recalibration (binary)

Start FRC (Perform Forced Recalibration of the CO2 Sensor). Value can be found in the published state on the forced_recalibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"forced_recalibration": NEW_VALUE}. If value equals ON forced recalibration is ON, if OFF OFF.

Manual forced recalibration (numeric)

Start Manual FRC (Perform Forced Recalibration of the CO2 Sensor). Value can be found in the published state on the manual_forced_recalibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"manual_forced_recalibration": NEW_VALUE}. The minimal value is 0 and the maximum value is 5000. The unit of this value is ppm.

Automatic self calibration (binary)

Automatic self calibration. Value can be found in the published state on the automatic_self_calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"automatic_self_calibration": NEW_VALUE}. If value equals ON automatic self calibration is ON, if OFF OFF.

Factory reset co2 (binary)

Factory Reset CO2 sensor. Value can be found in the published state on the factory_reset_co2 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"factory_reset_co2": NEW_VALUE}. If value equals ON factory reset co2 is ON, if OFF OFF.
