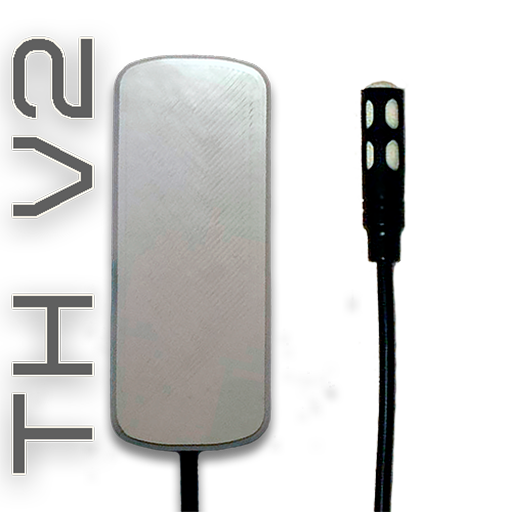

EFEKTA EFEKTA_TH_v2_LR


Model	EFEKTA_TH_v2_LR
Vendor	EFEKTA
Description	Temperature and humidity sensors with a signal amplifier. Simple Thermostat.
Exposes	identify, temperature, humidity, battery, voltage, battery_low, reading_interval, tx_radio_power, smart_sleep, uptime, config_report_enable, comparison_previous_data, enable_temperature, invert_logic_temperature, high_temperature, low_temperature, enable_humidity, invert_logic_humidity, high_humidity, low_humidity

Options

How to use device type specific configuration

temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.
humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a with a maximum value of 30

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric)

Reported battery voltage in millivolts. Value can be found in the published state on the voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage": ""}. It's not possible to write (/set) this value. The unit of this value is mV.

Battery low (binary)

Empty battery indicator. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Reading interval (numeric)

Setting the sensor reading interval in seconds, by default 30 seconds. Value can be found in the published state on the reading_interval property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"reading_interval": NEW_VALUE}. The minimal value is 10 and the maximum value is 360. The unit of this value is sec.

Tx radio power (enum)

Set TX Radio Power, dbm. Value can be found in the published state on the tx_radio_power property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"tx_radio_power": NEW_VALUE}. The possible values are: 4dbm, 19dbm.

Smart sleep (binary)

Enable Smart Sleep, short wakeup every 7 seconds. Value can be found in the published state on the smart_sleep property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"smart_sleep": NEW_VALUE}. If value equals ON smart sleep is ON, if OFF OFF.

Uptime (numeric)

Uptime. Value can be found in the published state on the uptime property. It's not possible to read (/get) or write (/set) this value. The unit of this value is Hours.

Config report enable (binary)

Enable reporting based on reporting configuration. Value can be found in the published state on the config_report_enable property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"config_report_enable": NEW_VALUE}. If value equals ON config report enable is ON, if OFF OFF.

Comparison previous data (binary)

Enable сontrol of comparison with previous data. Value can be found in the published state on the comparison_previous_data property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"comparison_previous_data": NEW_VALUE}. If value equals ON comparison previous data is ON, if OFF OFF.

Enable temperature (binary)

Enable Temperature Control. Value can be found in the published state on the enable_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"enable_temperature": NEW_VALUE}. If value equals ON enable temperature is ON, if OFF OFF.

Invert logic temperature (binary)

Invert Logic Temperature Control. Value can be found in the published state on the invert_logic_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"invert_logic_temperature": NEW_VALUE}. If value equals ON invert logic temperature is ON, if OFF OFF.

High temperature (numeric)

Setting High Temperature Border. Value can be found in the published state on the high_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"high_temperature": NEW_VALUE}. The minimal value is -40 and the maximum value is 90. The unit of this value is °C.

Low temperature (numeric)

Setting Low Temperature Border. Value can be found in the published state on the low_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"low_temperature": NEW_VALUE}. The minimal value is -40 and the maximum value is 90. The unit of this value is °C.

Enable humidity (binary)

Enable Humidity Control. Value can be found in the published state on the enable_humidity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"enable_humidity": NEW_VALUE}. If value equals ON enable humidity is ON, if OFF OFF.

Invert logic humidity (binary)

Invert Logic Humidity Control. Value can be found in the published state on the invert_logic_humidity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"invert_logic_humidity": NEW_VALUE}. If value equals ON invert logic humidity is ON, if OFF OFF.

High humidity (numeric)

Setting High Humidity Border. Value can be found in the published state on the high_humidity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"high_humidity": NEW_VALUE}. The minimal value is 0 and the maximum value is 99. The unit of this value is %.

Low humidity (numeric)

Setting Low Humidity Border. Value can be found in the published state on the low_humidity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"low_humidity": NEW_VALUE}. The minimal value is 0 and the maximum value is 99. The unit of this value is %.
