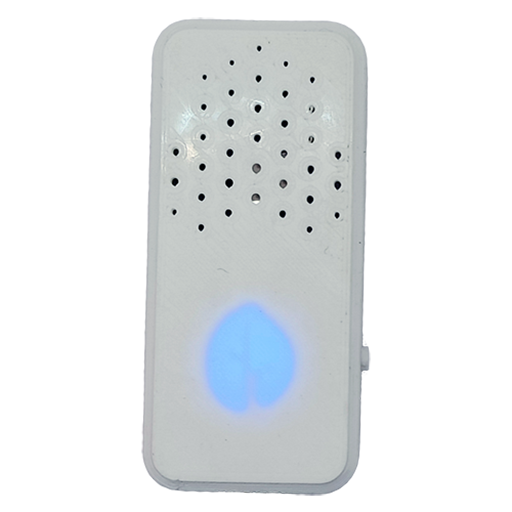

EFEKTA EFEKTA_CO2_Smart_Monitor_Gen2


Model	EFEKTA_CO2_Smart_Monitor_Gen2
Vendor	EFEKTA
Description	CO2, illuminance Smart Monitor, rgb indicator, binding, control the relays
Exposes	identify, co2, temperature, humidity, illuminance, lifetime, lux_factor, light (state, brightness), night_onoff_backlight, night_on_backlight, night_off_backlight, reading_interval, set_altitude, temperature_offset, humidity_offset, automatic_calibrations, forced_recalibration, factory_reset_co2, manual_forced_recalibration, invert_logic_onoff, enable_co2_gas, high_co2_gas, low_co2_gas

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

co2_calibration: Calibrates the co2 value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.
humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
illuminance_calibration: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.
identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a with a maximum value of 30
transition: Controls the transition time (in seconds) of on/off, brightness, color temperature (if applicable) and color (if applicable) changes. Defaults to 0 (no transition). The value must be a number with a minimum value of 0
illuminance_raw: Expose the raw illuminance value. The value must be true or false
state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.

CO2 (numeric)

Measured value. Value can be found in the published state on the co2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is ppm.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Illuminance (numeric)

Measured illuminance. Value can be found in the published state on the illuminance property. It's not possible to read (/get) or write (/set) this value. The unit of this value is lx.

Lifetime (numeric)

Uptime. Value can be found in the published state on the lifetime property. It's not possible to read (/get) or write (/set) this value. The unit of this value is Hours.

Lux factor (numeric)

Lux factor. Value can be found in the published state on the lux_factor property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"lux_factor": NEW_VALUE}. The minimal value is 0 and the maximum value is 10.

Light

This light supports the following features: state, brightness.

state: To control the state publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the state send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.
brightness: To control the brightness publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness": VALUE} where VALUE is a number between 0 and 254. To read the brightness send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the light will not answer to other on with timed off commands. Support depends on the light firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Transition

For all of the above mentioned features it is possible to do a transition of the value over time. To do this add an additional property transition to the payload which is the transition time in seconds. Examples: {"brightness":156,"transition":3}, {"color_temp":241,"transition":1}.

Moving/stepping

Instead of setting a value (e.g. brightness) directly it is also possible to:

move: this will automatically move the value over time, to stop send value stop or 0.
step: this will increment/decrement the current value by the given one.

The direction of move and step can be either up or down, provide a negative value to move/step down, a positive value to move/step up. To do this send a payload like below to zigbee2mqtt/FRIENDLY_NAME/set

NOTE: brightness move/step will stop at the minimum brightness and won't turn on the light when it's off. In this case use brightness_move_onoff/brightness_step_onoff

{
  "brightness_move": -40, // Starts moving brightness down at 40 units per second
  "brightness_move": 0, // Stop moving brightness
  "brightness_step": 40 // Increases brightness by 40
}

Night onoff backlight (binary)

Complete shutdown of the backlight at night mode. Value can be found in the published state on the night_onoff_backlight property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"night_onoff_backlight": NEW_VALUE}. If value equals ON night onoff backlight is ON, if OFF OFF.

Night on backlight (numeric)

Night mode activation time. Value can be found in the published state on the night_on_backlight property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"night_on_backlight": NEW_VALUE}. The minimal value is 0 and the maximum value is 23. The unit of this value is Hr.

Night off backlight (numeric)

Night mode deactivation time. Value can be found in the published state on the night_off_backlight property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"night_off_backlight": NEW_VALUE}. The minimal value is 0 and the maximum value is 23. The unit of this value is Hr.

Reading interval (numeric)

Setting the sensor reading interval.. Value can be found in the published state on the reading_interval property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"reading_interval": NEW_VALUE}. The minimal value is 15 and the maximum value is 300. The unit of this value is seconds.

Set altitude (numeric)

Setting the altitude above sea level (for high accuracy of the CO2 sensor). Value can be found in the published state on the set_altitude property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"set_altitude": NEW_VALUE}. The minimal value is 0 and the maximum value is 3000. The unit of this value is meters.

Temperature offset (numeric)

Adjust temperature. Value can be found in the published state on the temperature_offset property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_offset": NEW_VALUE}. The minimal value is -10 and the maximum value is 10. The unit of this value is °C.

Humidity offset (numeric)

Adjust humidity. Value can be found in the published state on the humidity_offset property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"humidity_offset": NEW_VALUE}. The minimal value is -50 and the maximum value is 50. The unit of this value is %.

Automatic calibrations (binary)

Automatic calibration of the CO2 sensor. Value can be found in the published state on the automatic_calibrations property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"automatic_calibrations": NEW_VALUE}. If value equals ON automatic calibrations is ON, if OFF OFF.

Forced recalibration (binary)

Start FRC (Perform Forced Recalibration of the CO2 Sensor). Value can be found in the published state on the forced_recalibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"forced_recalibration": NEW_VALUE}. If value equals ON forced recalibration is ON, if OFF OFF.

Factory reset co2 (binary)

Factory Reset CO2 sensor. Value can be found in the published state on the factory_reset_co2 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"factory_reset_co2": NEW_VALUE}. If value equals ON factory reset co2 is ON, if OFF OFF.

Manual forced recalibration (numeric)

Start Manual FRC (Perform Forced Recalibration of the CO2 Sensor). Value can be found in the published state on the manual_forced_recalibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"manual_forced_recalibration": NEW_VALUE}. The minimal value is 0 and the maximum value is 5000. The unit of this value is ppm.

Invert logic onoff (binary)

Enable invert logic onoff. Value can be found in the published state on the invert_logic_onoff property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"invert_logic_onoff": NEW_VALUE}. If value equals ON invert logic onoff is ON, if OFF OFF.

Enable co2 gas (binary)

Enable CO2 Gas Control. Value can be found in the published state on the enable_co2_gas property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"enable_co2_gas": NEW_VALUE}. If value equals ON enable co2 gas is ON, if OFF OFF.

High co2 gas (numeric)

Setting High CO2 Gas Border. Value can be found in the published state on the high_co2_gas property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"high_co2_gas": NEW_VALUE}. The minimal value is 400 and the maximum value is 5000. The unit of this value is ppm.

Low co2 gas (numeric)

Setting Low CO2 Gas Border. Value can be found in the published state on the low_co2_gas property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"low_co2_gas": NEW_VALUE}. The minimal value is 400 and the maximum value is 5000. The unit of this value is ppm.
