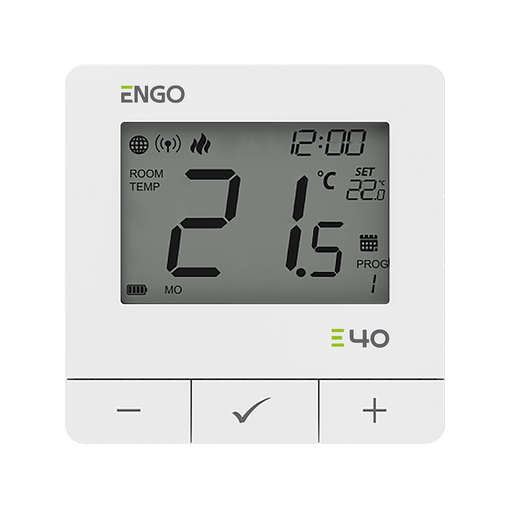

ENGO E40


Model	E40
Vendor	ENGO
Description	Zigbee smart thermostat
Exposes	climate (system_mode, current_heating_setpoint, local_temperature, local_temperature_calibration, running_state, preset), backlight, sensor_error, child_lock, temperature_set_enabled_while_blocked, relay_mode, sensor_choose, control_algorithm, frost_set, valve_protection, comfort_warm_floor, max_temperature, min_temperature, schedule_monday, schedule_tuesday, schedule_wednesday, schedule_thursday, schedule_friday, schedule_saturday, schedule_sunday, delta_t_rcwc_alg, device_pair_state

Options

How to use device type specific configuration

expose_device_state: Expose device power state as a separate property when enabled. Restart z2m after changing this setting. The value must be true or false

Exposes

Climate

This climate device supports the following features: system_mode, current_heating_setpoint, local_temperature, local_temperature_calibration, running_state, preset.

current_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"current_heating_setpoint": VALUE} where VALUE is the °C between 5 and 45. Reading (/get) this attribute is not possible.
local_temperature: Current temperature measured on the device (in °C). Reading (/get) this attribute is not possible.
system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: off, heat, cool. Reading (/get) this attribute is not possible.
preset: Mode of this device (similar to system_mode). To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"preset": VALUE} where VALUE is one of: manual, schedule, frost. Reading (/get) this attribute is not possible.
running_state: The current running state. Possible values are: idle, heat, cool. Reading (/get) this attribute is not possible.
local_temperature_calibration: Offset to add/subtract to the local temperature. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"local_temperature_calibration": VALUE}.The minimal value is -3.5 and the maximum value is 3.5 with a step size of 0.5.

Backlight brightness. Value can be found in the published state on the backlight property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"backlight": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Sensor error (enum)

Value can be found in the published state on the sensor_error property. It's not possible to read (/get) or write (/set) this value. The possible values are: Normal, E1, E2.

Child lock (binary)

Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.

Enable temperature control during child lock (binary)

Option to control temperature buttons while child lock is enabled. (Available only in newer version of regulator software).. Value can be found in the published state on the temperature_set_enabled_while_blocked property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_set_enabled_while_blocked": NEW_VALUE}. If value equals ON enable temperature control during child lock is ON, if OFF OFF.

Relay mode (enum)

Value can be found in the published state on the relay_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"relay_mode": NEW_VALUE}. The possible values are: NO, NC, OFF.

Sensor choose (enum)

Value can be found in the published state on the sensor_choose property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensor_choose": NEW_VALUE}. The possible values are: internal, all, external.

Control algorithm (enum)

Value can be found in the published state on the control_algorithm property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"control_algorithm": NEW_VALUE}. The possible values are: TPI_UFH, TPI_RAD, TPI_ELE, HIS_02, HIS_04, HIS_06, HIS_08, HIS_10, HIS_20, HIS_30, HIS_40.

Frost set (numeric)

Value can be found in the published state on the frost_set property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"frost_set": NEW_VALUE}. The minimal value is 5 and the maximum value is 17. The unit of this value is °C.

Valve Protection (enum)

Prevents valve blockage during long periods of inactivity.. Value can be found in the published state on the valve_protection property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"valve_protection": NEW_VALUE}. The possible values are: off, on, anti_stop.

Comfort warm floor (enum)

Automatically warms the floor every 60 minutes for 7, 11, 15, 19 or 23 minutes according to the level number.. Value can be found in the published state on the comfort_warm_floor property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"comfort_warm_floor": NEW_VALUE}. The possible values are: OFF, LEVEL1, LEVEL2, LEVEL3, LEVEL4, LEVEL5.

Max temperature (numeric)

Maximum temperature. Value can be found in the published state on the max_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_temperature": NEW_VALUE}. The minimal value is 5 and the maximum value is 45. The unit of this value is °C.

Min temperature (numeric)

Minimum temperature. Value can be found in the published state on the min_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_temperature": NEW_VALUE}. The minimal value is 5 and the maximum value is 45. The unit of this value is °C.

Schedule monday (text)

Value can be found in the published state on the schedule_monday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_monday": NEW_VALUE}.

Schedule tuesday (text)

Value can be found in the published state on the schedule_tuesday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_tuesday": NEW_VALUE}.

Schedule wednesday (text)

Value can be found in the published state on the schedule_wednesday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_wednesday": NEW_VALUE}.

Schedule thursday (text)

Value can be found in the published state on the schedule_thursday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_thursday": NEW_VALUE}.

Schedule friday (text)

Value can be found in the published state on the schedule_friday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_friday": NEW_VALUE}.

Schedule saturday (text)

Value can be found in the published state on the schedule_saturday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_saturday": NEW_VALUE}.

Schedule sunday (text)

Value can be found in the published state on the schedule_sunday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_sunday": NEW_VALUE}.

Delta RCWC Algorithm (numeric)

Defines how fast the TRV will react on temperature change. Defaults to 2.0. Value can be found in the published state on the delta_t_rcwc_alg property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"delta_t_rcwc_alg": NEW_VALUE}. The minimal value is 0.5 and the maximum value is 5. The unit of this value is °C.

Device Pair State (enum)

Defines paired devices type: None, Commutation Center or TRV. Value can be found in the published state on the device_pair_state property. It's not possible to read (/get) or write (/set) this value. The possible values are: none, commutation_center, trv.
