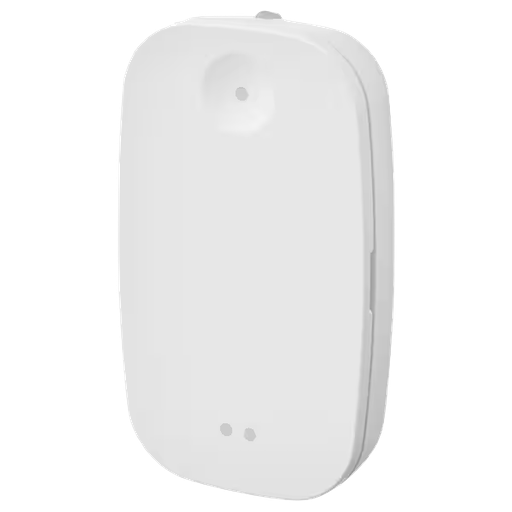

IKEA E2213

Model	E2213
Vendor	IKEA
Description	SOMRIG shortcut button
Exposes	identify, battery, voltage, action

Notes

Printing Template

Template to print own covers is provided here.

Pairing

Pair the remote to Zigbee2MQTT by holding it close to the coordinator and pressing the inside button 4 times. The red light on the (front of the) remote will now flash a few times.

Troubleshooting: Device didn't respond to OTA request

To resolve the Device didn't respond to OTA request error, you can try to push a button on it, shortly before you start the update, to wake up the Remote. Sometimes it also helps keeping the device awake, by pushing a button repeatedly until you read the first "Updating... 0.00%" message (about 5s).

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

• identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a with a maximum value of 30

Exposes

Identify (enum)

Initiate device identification. This device is asleep by default.You may need to wake it up first before sending the identify command.. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric)

Reported battery voltage in millivolts. Value can be found in the published state on the voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage": ""}. It's not possible to write (/set) this value. The unit of this value is mV.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: 1_initial_press, 1_long_press, 1_short_release, 1_long_release, 1_double_press, 2_initial_press, 2_long_press, 2_short_release, 2_long_release, 2_double_press.
