Sengled E1E-G7F #

Model E1E-G7F
Vendor Sengled
Description Smart switch
Exposes action, linkquality

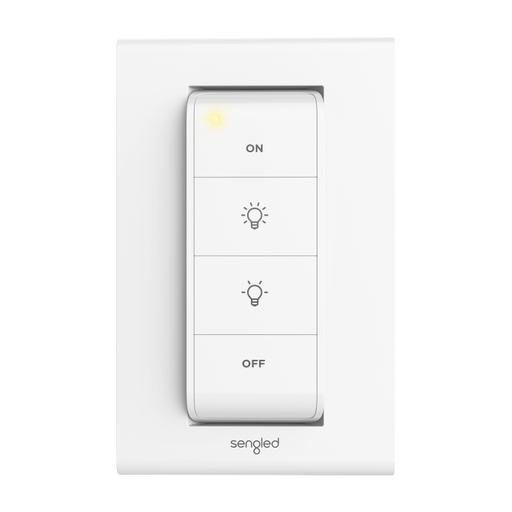

Picture Sengled E1E-G7F

Notes #

Pairing #

Factory reset the switch by pressing and holding the on and off buttons at the same time for at least 3 seconds. The indicator will start flashing, indicating a successful reset. The device will enter pairing mode for one minute. If the device is not connected in one minute, you must restart the pairing process.

If device won’t go in to pairing mode, try installing a fresh battery.

Long press action #

The device will sometimes output a single push in addition to a long press. You can mitigate this by using the Debounce device configuration. Refer to How to use device type specific configuration.

Exposes #

Action (enum) #

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It’s not possible to read (/get) or write (/set) this value. The possible values are: on, up, down, off, on_double, on_long, off_double, off_long.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.action }}"
    enabled_by_default: true
    icon: "mdi:gesture-double-tap"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    enabled_by_default: false
    icon: "mdi:signal"
    state_class: "measurement"
