Sinopé DM2550ZB

ModelDM2550ZB
VendorSinopé
DescriptionZigbee Adaptive phase smart dimmer
Exposeslight (state, brightness), timer_seconds, led_intensity_on, led_intensity_off, minimum_brightness, led_color_on, led_color_off, linkquality

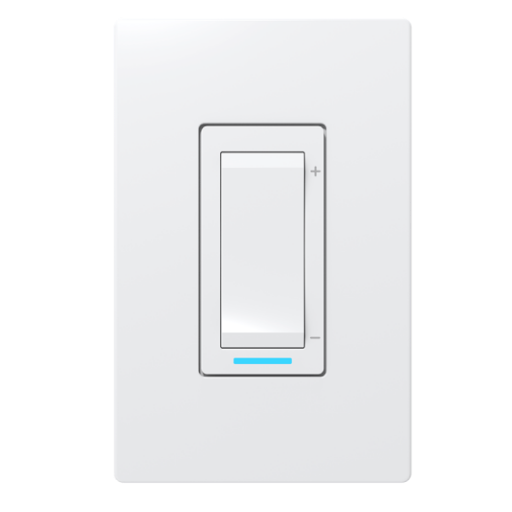

PictureSinopé DM2550ZB

Options

How to use device type specific configuration

  • transition: Controls the transition time (in seconds) of on/off, brightness, color temperature (if applicable) and color (if applicable) changes. Defaults to 0 (no transition). The value must be a number with a minimum value of 0

  • state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Light

This light supports the following features: state, brightness.

  • state: To control the state publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the state send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.
  • brightness: To control the brightness publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness": VALUE} where VALUE is a number between 0 and 254. To read the brightness send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionnaly an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the light will not answer to other on with timed off commands. Support depend on the light firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Timer seconds (numeric)

Automatically turn off load after x seconds. Value can be found in the published state on the timer_seconds property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"timer_seconds": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"timer_seconds": NEW_VALUE}. The minimal value is 0 and the maximum value is 65535. The unit of this value is s. Besides the numeric values the following values are accepted: Disabled.

Led intensity on (numeric)

Control status LED intensity when load ON. Value can be found in the published state on the led_intensity_on property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_intensity_on": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_intensity_on": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Led intensity off (numeric)

Control status LED when load OFF. Value can be found in the published state on the led_intensity_off property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_intensity_off": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_intensity_off": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Minimum brightness (numeric)

Control minimum dimmer brightness. Value can be found in the published state on the minimum_brightness property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"minimum_brightness": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"minimum_brightness": NEW_VALUE}. The minimal value is 0 and the maximum value is 3000.

Led color on (composite)

Control status LED color when load ON. Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_color_on": {"r": VALUE, "g": VALUE, "b": VALUE}}

  • r (numeric)
  • g (numeric)
  • b (numeric)

Led color off (composite)

Control status LED color when load OFF. Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_color_off": {"r": VALUE, "g": VALUE, "b": VALUE}}

  • r (numeric)
  • g (numeric)
  • b (numeric)

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
