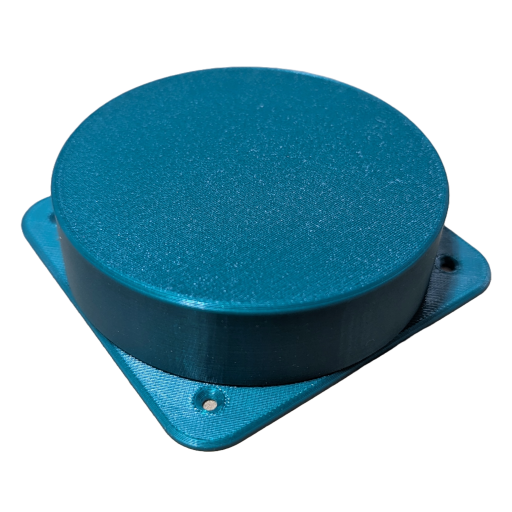

Bacchus Bacchus Water level meter


Model	Bacchus Water level meter
Vendor	Bacchus
Description	Bacchus tank water level sensor
Exposes	water_level, out_of_service, filling, temperature, tank_height, alarm_min_threshold, alarm_max_threshold, invert_threshold, measurment_period, battery, voltage

temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

Exposes

Water level (numeric)

Current water level in cm. Value can be found in the published state on the water_level property. It's not possible to read (/get) or write (/set) this value. The unit of this value is cm.

Level is out if service. Value can be found in the published state on the out_of_service property. It's not possible to read (/get) or write (/set) this value. If value equals True out of service is ON, if False OFF.

Filling (numeric)

Tank filling. Value can be found in the published state on the filling property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Tank height (numeric)

Water tank height in cm. Value can be found in the published state on the tank_height property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"tank_height": NEW_VALUE}. The minimal value is 0 and the maximum value is 450. The unit of this value is cm.

Alarm min threshold (numeric)

Min threshold for alarm binding. Value can be found in the published state on the alarm_min_threshold property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_min_threshold": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Alarm max threshold (numeric)

Max threshold for alarm binding. Value can be found in the published state on the alarm_max_threshold property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_max_threshold": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Invert threshold (binary)

Invert thresholds for on and off commands. Value can be found in the published state on the invert_threshold property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"invert_threshold": NEW_VALUE}. If value equals True invert threshold is ON, if False OFF.

Measurment period (numeric)

Max threshold for alarm binding. Value can be found in the published state on the measurment_period property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"measurment_period": NEW_VALUE}. The minimal value is 0 and the maximum value is 3600. The unit of this value is min.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric)

Reported battery voltage in millivolts. Value can be found in the published state on the voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage": ""}. It's not possible to write (/set) this value. The unit of this value is mV.
