Tuya BAC-003

ModelBAC-003
VendorTuya
DescriptionFCU thermostat temperature controller
Exposesclimate (local_temperature, system_mode, fan_mode, current_heating_setpoint, preset, local_temperature_calibration), child_lock, schedule, max_temperature, deadzone_temperature

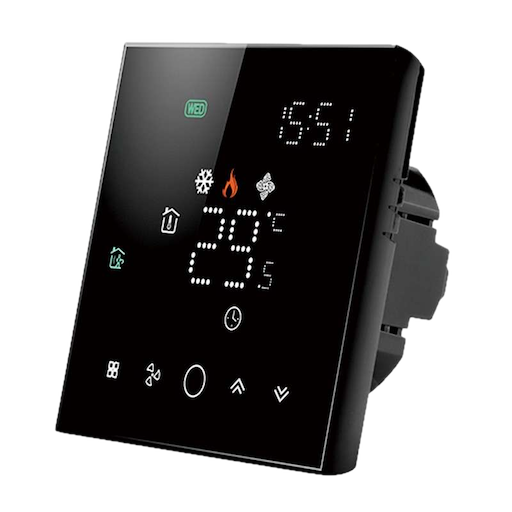

PictureTuya BAC-003

Options

How to use device type specific configuration

  • control_sequence_of_operation: Operating environment of the thermostat. The value must be one of cooling_only, cooling_and_heating_4-pipes

  • expose_device_state: Expose device power state as a separate property when enabled. The value must be true or false

Exposes

Climate

This climate device supports the following features: local_temperature, system_mode, fan_mode, current_heating_setpoint, preset, local_temperature_calibration.

  • current_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"current_heating_setpoint": VALUE} where VALUE is the °C between 5 and 35. Reading (/get) this attribute is not possible.
  • local_temperature: Current temperature measured on the device (in °C). Reading (/get) this attribute is not possible.
  • system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: off, cool, heat, fan_only. Reading (/get) this attribute is not possible.
  • preset: Mode of this device (similar to system_mode). To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"preset": VALUE} where VALUE is one of: auto, manual. Reading (/get) this attribute is not possible.
  • local_temperature_calibration: Offset to add/subtract to the local temperature. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"local_temperature_calibration": VALUE}.The minimal value is -3 and the maximum value is 3 with a step size of 1.

Child lock (binary)

Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.

Schedule (composite)

Auto-mode schedule, 4 periods each per category. Example: "06:00/20 11:30/21 13:30/22 17:30/23.5".. Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule": {"weekdays": VALUE, "saturday": VALUE, "sunday": VALUE}}

  • weekdays (text): Schedule (1-5), 4 periods in format "hh:mm/tt".
  • saturday (text): Schedule (6), 4 periods in format "hh:mm/tt".
  • sunday (text): Schedule (7), 4 periods in format "hh:mm/tt".

Max temperature (numeric)

Maximum temperature. Value can be found in the published state on the max_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_temperature": NEW_VALUE}. The minimal value is 35 and the maximum value is 45. The unit of this value is °C. Besides the numeric values the following values are accepted: default.

Deadzone temperature (numeric)

The delta between local_temperature and current_heating_setpoint to trigger activity. Value can be found in the published state on the deadzone_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"deadzone_temperature": NEW_VALUE}. The minimal value is 1 and the maximum value is 5. The unit of this value is °C. Besides the numeric values the following values are accepted: default.
