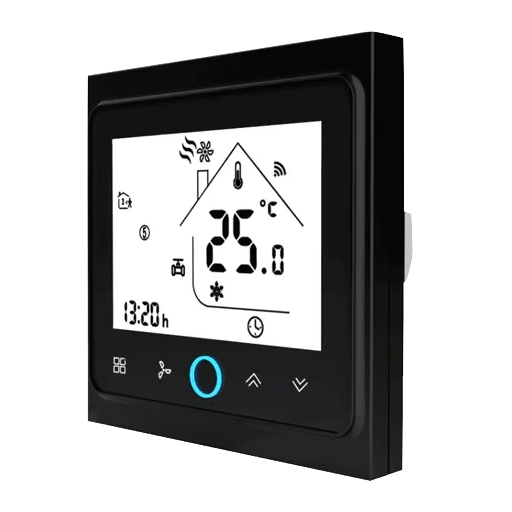

HKGK BAC-002-ALZB #

Model	BAC-002-ALZB
Vendor	HKGK
Description	BAC series thermostat
Exposes	lock (state), deadzone_temperature, max_temperature_limit, climate (current_heating_setpoint, local_temperature, local_temperature_calibration, system_mode, running_state, preset, sensor), linkquality

Notes #

Pairing #

Switch the thermostat off. Press and hold the temperature down button for +- 8 seconds to enable the pairing mode (display lights up and a WiFi-like icon is blinking). After successful interview turn the thermostat on again.

Stop message flooding #

This unit has a bug that makes it send multiple messages when updating. To stop this from flooding your MQTT Queues, please add the following to your configuration.yaml file:

devices: ‘0x12345678’: friendly_name: thermostat debounce: 1

Exposes #

Lock #

The current state of this lock is in the published state under the child_lock property (value is LOCK or UNLOCK). To control this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": "LOCK"} or {"child_lock": "UNLOCK"}. To read the current state of this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"child_lock": ""}.

Deadzone_temperature (numeric) #

The delta between local_temperature and current_heating_setpoint to trigger Heat. 1-5. Value can be found in the published state on the deadzone_temperature property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"deadzone_temperature": NEW_VALUE}. The unit of this value is °C.

Max_temperature_limit (numeric) #

Maximum temperature limit. Value can be found in the published state on the max_temperature_limit property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_temperature_limit": NEW_VALUE}. The unit of this value is °C.

Climate #

This climate device supports the following features: current_heating_setpoint, local_temperature, local_temperature_calibration, system_mode, running_state, preset, sensor.

• current_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"current_heating_setpoint": VALUE} where VALUE is the °C between 5 and 30. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"current_heating_setpoint": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: off, cool. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode": ""}.
• preset: Mode of this device (similar to system_mode). To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"preset": VALUE} where VALUE is one of: hold, program. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"preset": ""}.
• running_state: The current running state. Possible values are: idle, heat, cool. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"running_state": ""}.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

lock:
  - platform: "mqtt"
    state_topic: true
    availability_topic: "zigbee2mqtt/bridge/state"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    value_template: "{{ value_json.child_lock }}"
    payload_lock: "LOCK"
    payload_unlock: "UNLOCK"
    state_locked: "LOCK"
    state_unlocked: "UNLOCK"
    command_topic_postfix: "child_lock"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.deadzone_temperature }}"
    unit_of_measurement: "°C"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.max_temperature_limit }}"
    unit_of_measurement: "°C"

climate:
  - platform: "mqtt"
    availability_topic: "zigbee2mqtt/bridge/state"
    temperature_unit: "C"
    temp_step: 1
    min_temp: "5"
    max_temp: "30"
    current_temperature_topic: true
    current_temperature_template: "{{ value_json.local_temperature }}"
    mode_state_topic: true
    mode_state_template: "{{ value_json.system_mode }}"
    modes:
      - "off"
      - "cool"
    mode_command_topic: true
    action_topic: true
    action_template: "{% set values = {'idle':'off','heat':'heating','cool':'cooling','fan only':'fan'} %}{{ values[value_json.running_state] }}"
    temperature_command_topic: "current_heating_setpoint"
    temperature_state_template: "{{ value_json.current_heating_setpoint }}"
    temperature_state_topic: true
    hold_modes:
      - "hold"
      - "program"
    hold_command_topic: true
    hold_state_template: "{{ value_json.preset }}"
    hold_state_topic: true

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    icon: "mdi:signal"
