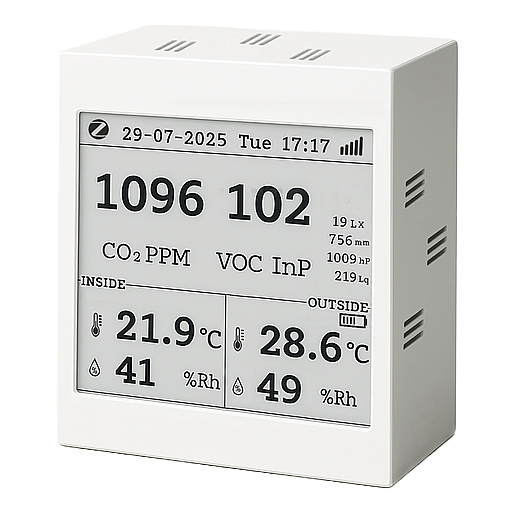

Slacky-DIY AirQ_Monitor_S01


Model	AirQ_Monitor_S01
Vendor	Slacky-DIY
Description	Air quality monitor
Exposes	co2, voc_index, temperature, humidity, pressure, illuminance, display_rotate, display_inversion, temperature_display_mode, temperature_offset, read_interval, enabling_co2_control, low_co2, high_co2, enabling_voc_control, low_voc, high_voc, switch_actions, brightness, enabling_sound, frc_co2_correction, features_sensors, life_time

Original project description

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

co2_calibration: Calibrates the co2 value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.
humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
pressure_calibration: Calibrates the pressure value (absolute offset), takes into effect on next report of device. The value must be a number.
pressure_precision: Number of digits after decimal point for pressure, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
illuminance_calibration: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.
illuminance_raw: Expose the raw illuminance value. The value must be true or false

Measured value. Value can be found in the published state on the co2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"co2": ""}. It's not possible to write (/set) this value. The unit of this value is ppm.

Voc index (numeric)

VOC index. Value can be found in the published state on the voc_index property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voc_index": ""}. It's not possible to write (/set) this value. The unit of this value is VOC Index points.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Pressure (numeric)

The measured atmospheric pressure. Value can be found in the published state on the pressure property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"pressure": ""}. It's not possible to write (/set) this value. The unit of this value is kPa.

Illuminance (numeric)

Measured illuminance. Value can be found in the published state on the illuminance property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"illuminance": ""}. It's not possible to write (/set) this value. The unit of this value is lx.

Display rotate (enum)

Display orientation (horizontal/vertical). Value can be found in the published state on the display_rotate property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"display_rotate": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"display_rotate": NEW_VALUE}. The possible values are: horizontal, vertical.

Display inversion (enum)

Display inversion (black on white/white on black). Value can be found in the published state on the display_inversion property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"display_inversion": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"display_inversion": NEW_VALUE}. The possible values are: black_on_white, white_on_black.

Temperature display mode (enum)

The units of the temperature displayed on the device screen. Value can be found in the published state on the temperature_display_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_display_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_display_mode": NEW_VALUE}. The possible values are: celsius, fahrenheit.

Temperature offset (numeric)

Offset to add/subtract to the inside temperature. Value can be found in the published state on the temperature_offset property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_offset": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_offset": NEW_VALUE}. The minimal value is -5 and the maximum value is 5. The unit of this value is °C.

Read interval (numeric)

Sensors reading period. Value can be found in the published state on the read_interval property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"read_interval": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"read_interval": NEW_VALUE}. The minimal value is 5 and the maximum value is 600. The unit of this value is Sec.

Enabling co2 control (binary)

Enables/disables CO2 control. Value can be found in the published state on the enabling_co2_control property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"enabling_co2_control": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"enabling_co2_control": NEW_VALUE}. If value equals ON enabling co2 control is ON, if OFF OFF.

Low co2 (numeric)

CO2 low turn-off limit. Value can be found in the published state on the low_co2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"low_co2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"low_co2": NEW_VALUE}. The minimal value is 400 and the maximum value is 2000. The unit of this value is ppm.

High co2 (numeric)

CO2 high turn-on limit. Value can be found in the published state on the high_co2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"high_co2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"high_co2": NEW_VALUE}. The minimal value is 400 and the maximum value is 2000. The unit of this value is ppm.

Enabling voc control (binary)

Enables/disables VOC control. Value can be found in the published state on the enabling_voc_control property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"enabling_voc_control": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"enabling_voc_control": NEW_VALUE}. If value equals ON enabling voc control is ON, if OFF OFF.

Low voc (numeric)

VOC low turn-off limit. Value can be found in the published state on the low_voc property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"low_voc": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"low_voc": NEW_VALUE}. The minimal value is 1 and the maximum value is 500. The unit of this value is VOC index points.

High voc (numeric)

VOC high turn-on limit. Value can be found in the published state on the high_voc property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"high_voc": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"high_voc": NEW_VALUE}. The minimal value is 1 and the maximum value is 500. The unit of this value is VOC index points.

Switch actions (enum)

Actions switch. Value can be found in the published state on the switch_actions property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_actions": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_actions": NEW_VALUE}. The possible values are: off, on.

Brightness (numeric)

LED brightness. Value can be found in the published state on the brightness property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness": NEW_VALUE}. The minimal value is 0 and the maximum value is 255.

Enabling sound (binary)

Enables/disables sound. Value can be found in the published state on the enabling_sound property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"enabling_sound": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"enabling_sound": NEW_VALUE}. If value equals ON enabling sound is ON, if OFF OFF.

Frc co2 correction (numeric)

FRC CO2 correction. Value can be found in the published state on the frc_co2_correction property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"frc_co2_correction": ""}. It's not possible to write (/set) this value. The unit of this value is ppm.

Features sensors (composite)

Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"features_sensors": {"features": VALUE}}

features (enum) allowed values: nothing, co2_forced_calibration, co2_factory_reset, bind_reset, ``

Life time (numeric)

Life time of device. Value can be found in the published state on the life_time property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"life_time": ""}. It's not possible to write (/set) this value. The unit of this value is h.
