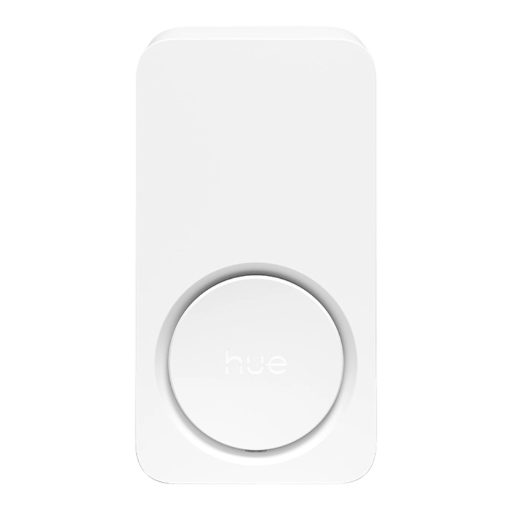

Philips 8720169277243


Model	8720169277243
Vendor	Philips
Description	Hue Secure siren and chime
Exposes	switch (state), play_sound, trigger_siren, identify

Device commands

All of these commands should be published to zigbee2mqtt/DEVICE NAME/set.

Mute/unmute the device

{"state": "x"} where x is ON for unmute or OFF for mute.

Trigger the siren

{"trigger_siren": {"duration": x}} where x is the time in seconds (1-16777) to sound the siren.

Stop the siren

{"trigger_siren": {"duration": 0}} (a duration of zero stops the siren).

Play a built-in chime sound

{"play_sound": {"sound": "sound_name", "volume": x}} where sound_name is the sound you want to play (list below) and x is the volume (1-100).

Available sounds (sounds with an asterisk are only available on firmware version >= 1.123.13):

bleep
bounce *
bright
bright_modern *
ding_dong_classic
ding_dong_modern
ding_dong_xylo
echo *
fairy *
galaxy *
glow *
hue_default
reveal *
rise
sonar
swing
triple_beep
welcome *
westminster_classic
westminster_modern

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a maximum value of 30

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "undefined"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

Play sound (composite)

Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"play_sound": {"sound": VALUE, "volume": VALUE}}

sound (enum) allowed values: bleep, bounce, bright, bright_modern, ding_dong_classic, ding_dong_modern, ding_dong_xylo, echo, fairy, galaxy, glow, hue_default, reveal, rise, sonar, swing, triple_beep, welcome, westminster_classic, westminster_modern
volume (numeric): Volume 0-100 max value is 100

Trigger siren (composite)

Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"trigger_siren": {"duration": VALUE}}

duration (numeric) max value is 600, unit is seconds

Identify (enum)

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.
