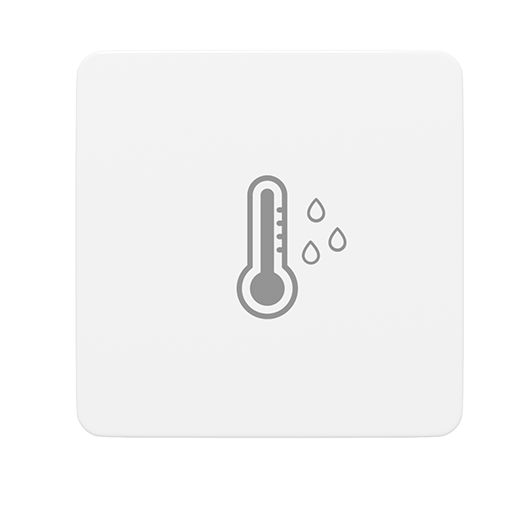

Third Reality 3RTHS0324Z

Model	3RTHS0324Z
Vendor	Third Reality
Description	Temperature and Humidity Sensor Lite Gen2
Exposes	battery, temperature, humidity, celsius_degree_calibration, humidity_calibration, fahrenheit_degree_calibration, action

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

• temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.

• temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

• humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.

• humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Celsius degree calibration (numeric)

Celsius degree calibration. Value can be found in the published state on the celsius_degree_calibration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"celsius_degree_calibration": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"celsius_degree_calibration": NEW_VALUE}. The minimal value is -200 and the maximum value is 200. The unit of this value is °C.

Humidity calibration (numeric)

Humidity calibration. Value can be found in the published state on the humidity_calibration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_calibration": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"humidity_calibration": NEW_VALUE}. The minimal value is -100 and the maximum value is 100. The unit of this value is %.

Fahrenheit degree calibration (numeric)

Fahrenheit degree calibration. Value can be found in the published state on the fahrenheit_degree_calibration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"fahrenheit_degree_calibration": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fahrenheit_degree_calibration": NEW_VALUE}. The minimal value is -200 and the maximum value is 200. The unit of this value is °F.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on, off, toggle.
