Konke 2AJZ4KPBS #

Model 2AJZ4KPBS
Vendor Konke
Description Motion sensor
Supports occupancy

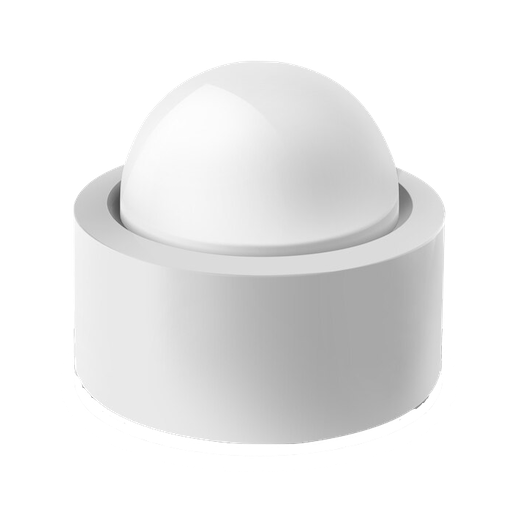

Picture Konke 2AJZ4KPBS

Notes #

Important #

Konke devices only work on Zigbee channel 15, 20 and 25.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.occupancy }}"
    payload_on: true
    payload_off: false
    device_class: "motion"

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.battery_low }}"
    payload_on: true
    payload_off: false
    device_class: "battery"

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.tamper }}"
    payload_on: true
    payload_off: false

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    unit_of_measurement: "%"
    value_template: "{{ value_json.battery }}"
    device_class: "battery"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    unit_of_measurement: "lqi"
    value_template: "{{ value_json.linkquality }}"
    icon: "mdi:signal"
