Zigbee2MQTT

Legrand 067771

Model067771
VendorLegrand
DescriptionWired switch without neutral
Exposesballast_minimum_level, ballast_maximum_level, device_mode, led_in_dark, led_if_on, light (state, brightness), effect, power_on_behavior, linkquality

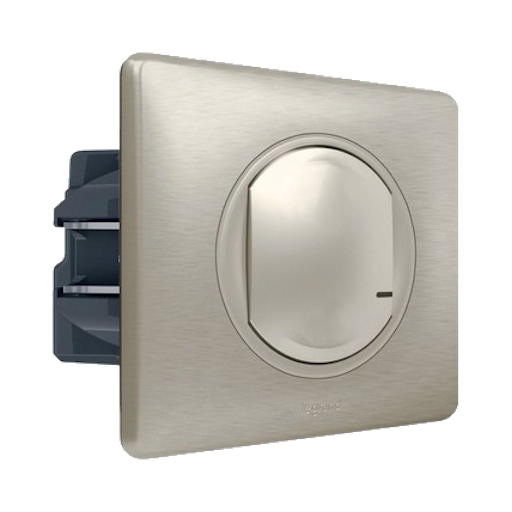

PictureLegrand 067771

Notes

Model numbers

Model number depends on the country and the colour of the devices, for instance:

  • French models are branded as Céliane with Netatmo, and models for this device depends on the colour, with the following numbers: "0 677 21", "0 677 71" and "0 648 91".

  • Spanish models are branded as Legrand Valena Next, and models for this device depends on the colour, with the following numbers: "7 418 10", "7 418 40" and "7 418 70".

Other brand names depending on the country:

  • Availability for Céliane™ with Netatmo → France and Overseas territories, Greece, Poland, Hungary, Tunisia, Morocco, Ivory Coast, Czech Republic, Russia, Mauritius
  • Availability for Dooxie™ with Netatmo → France and Overseas territories
  • Availability for Mosaic™ with Netatmo → France and Overseas territories, Ivory Coast
  • Availability for Living Now™ with Netatmo → Italy, Belgium, Greece, Portugal, Lebanon, Israel, Chile, Peru, Mexico
  • Availability for Valena Allure™ with Netatmo → Greece, Germany, Austria, Poland, Slovakia, Bulgaria, Czech Republic, Hungary, Russia
  • Availability for Valena Life™ with Netatmo → Greece, Germany, Austria, Portugal, Poland, Slovakia, Bulgaria, Czech Republic, Hungary, Lituania, Russia
  • Availability for Valena Next™ with Netatmo → Spain, Belgium
  • Availability for Arteor™ with Netatmo → Australia, New Zealand, India, Malaysia, Lebanon, Mauritius, South Africa
  • Availability for Plexo™ with Netatmo → France and Overseas territories, Spain, Belgium
  • Availability for Modul'Up™ with Netatmo → France and Overseas territories

LED configuration

  • permanent_led: enable or disable the permanent blue LED. Values: ON / OFF (default)
  • led_when_on: enables the LED when the light is on. Values: ON / OFF (default)

Example of MQTT message payload to disable permanent LED and enable LED when the lights are on. This should be sent to zigbee2mqtt/FRIENDLY_NAME/set:

{
    "permanent_led": "OFF",
    "led_when_on": "ON"
}

Dimmer

  • dimmer_enabled: enable or disable the dimming functions. Values: ON / OFF (default)

Example of MQTT message payload to enable dimming. This should be sent to zigbee2mqtt/FRIENDLY_NAME/set:

{
    "dimmer_enabled": "ON"
}

Identify

Helps to identify the switch using the LED.

  • identify['effect']: only works for blink3 & fixed in effect. Values:

    • blink3
    • fixed
    • blinkgreen
    • blinkblue

  • identify['color']: only works for blink3 & fixed in effect. Values:

    • default
    • red
    • green
    • blue
    • lightblue
    • yellow
    • pink
    • white

Example of MQTT message payload to Identify the switch. This should be sent to zigbee2mqtt/FRIENDLY_NAME/set:

{
  "identify": {
    "effect": "blink3",
    "color": "white"
  }
}

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

  • transition: Controls the transition time (in seconds) of on/off, brightness, color temperature (if applicable) and color (if applicable) changes. Defaults to 0 (no transition). The value must be a number with a minimum value of 0

  • state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Ballast minimum level (numeric)

Specifies the minimum brightness value. Value can be found in the published state on the ballast_minimum_level property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"ballast_minimum_level": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"ballast_minimum_level": NEW_VALUE}. The minimal value is 1 and the maximum value is 254.

Ballast maximum level (numeric)

Specifies the maximum brightness value. Value can be found in the published state on the ballast_maximum_level property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"ballast_maximum_level": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"ballast_maximum_level": NEW_VALUE}. The minimal value is 1 and the maximum value is 254.

Device mode (binary)

Allow the device to change brightness. Value can be found in the published state on the device_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"device_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"device_mode": NEW_VALUE}. If value equals dimmer_on device mode is ON, if dimmer_off OFF.

Led in dark (binary)

Enables the LED when the light is turned off, allowing to see the switch in the dark. Value can be found in the published state on the led_in_dark property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_in_dark": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_in_dark": NEW_VALUE}. If value equals ON led in dark is ON, if OFF OFF.

Led if on (binary)

Enables the LED when the light is turned on. Value can be found in the published state on the led_if_on property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_if_on": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_if_on": NEW_VALUE}. If value equals ON led if on is ON, if OFF OFF.

Light

This light supports the following features: state, brightness.

  • state: To control the state publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the state send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.
  • brightness: To control the brightness publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness": VALUE} where VALUE is a number between 0 and 254. To read the brightness send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionnaly an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the light will not answer to other on with timed off commands. Support depend on the light firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Transition

For all of the above mentioned features it is possible to do a transition of the value over time. To do this add an additional property transition to the payload which is the transition time in seconds. Examples: {"brightness":156,"transition":3}, {"color_temp":241,"transition":1}.

Moving/stepping

Instead of setting a value (e.g. brightness) directly it is also possible to:

  • move: this will automatically move the value over time, to stop send value stop or 0.
  • step: this will increment/decrement the current value by the given one.

The direction of move and step can be either up or down, provide a negative value to move/step down, a positive value to move/step up. To do this send a payload like below to zigbee2mqtt/FRIENDLY_NAME/set

NOTE: brightness move/step will stop at the minimum brightness and won't turn on the light when it's off. In this case use brightness_move_onoff/brightness_step_onoff

{
  "brightness_move": -40, // Starts moving brightness down at 40 units per second
  "brightness_move": 0, // Stop moving brightness
  "brightness_step": 40 // Increases brightness by 40
}

Effect (enum)

Triggers an effect on the light (e.g. make light blink for a few seconds). Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"effect": NEW_VALUE}. The possible values are: blink, breathe, okay, channel_change, finish_effect, stop_effect.

Power-on behavior (enum)

Controls the behavior when the device is powered on after power loss. If you get an UNSUPPORTED_ATTRIBUTE error, the device does not support it.. Value can be found in the published state on the power_on_behavior property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_on_behavior": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: off, on, toggle, previous.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
