MySmartHouse msh.ina226m

Modelmsh.ina226m
VendorMySmartHouse
DescriptionMSH 9-26V, 5A DC Power Meter, with CPU temperature support
Exposespower, voltage, current, temperature, l4

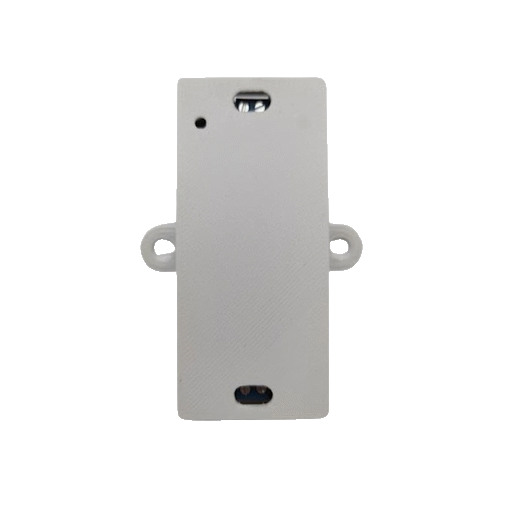

PictureMySmartHouse msh.ina226m

Notes

MSH 9-26V, 5A DC Power Meter, with CPU temperature support

Options

How to use device type specific configuration

  • power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.

  • power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

  • voltage_calibration: Calibrates the voltage value (percentual offset), takes into effect on next report of device. The value must be a number.

  • voltage_precision: Number of digits after decimal point for voltage, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

  • current_calibration: Calibrates the current value (percentual offset), takes into effect on next report of device. The value must be a number.

  • current_precision: Number of digits after decimal point for current, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

  • temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.

  • temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

Exposes

Power (numeric, l2 endpoint)

Instantaneous measured power. Value can be found in the published state on the power_l2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_l2": ""}. It's not possible to write (/set) this value. The unit of this value is W.

Voltage (numeric, l2 endpoint)

Measured electrical potential value. Value can be found in the published state on the voltage_l2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage_l2": ""}. It's not possible to write (/set) this value. The unit of this value is V.

Current (numeric, l2 endpoint)

Instantaneous measured electrical current. Value can be found in the published state on the current_l2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"current_l2": ""}. It's not possible to write (/set) this value. The unit of this value is A.

CPU Temperature (numeric, l5 endpoint)

Temperature of the CPU. Value can be found in the published state on the temperature_l5 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Uptime (numeric, l4 endpoint)

Uptime (seconds). Value can be found in the published state on the l4_l4 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is s.
