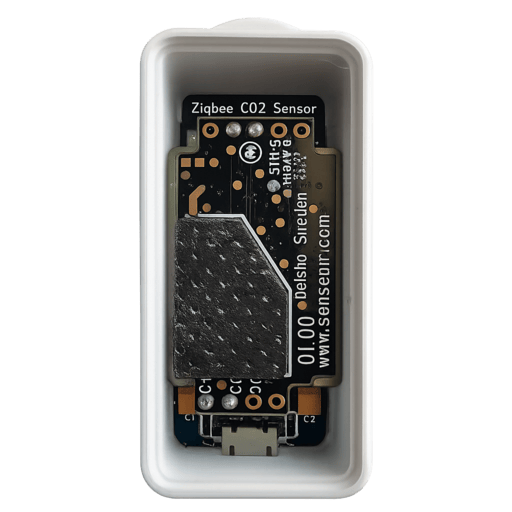

MySmartHouse msh.AirQMon
| Model | msh.AirQMon |
| Vendor | MySmartHouse |
| Description | MSH Air quality sensor |
| Exposes | action, calibrate, co2, l2, cpu_temperature, l4 |
| Picture |  |
Notes
Options
How to use device type specific configuration
co2_calibration: Calibrates the co2 value (absolute offset), takes into effect on next report of device. The value must be a number.
Exposes
Action (text)
button clicks or data from/to UART. Value can be found in the published state on the action property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"action": NEW_VALUE}.
Calibrate (enum, l2 endpoint)
Calibration. Value can be found in the published state on the calibrate_l2 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"calibrate_l2": NEW_VALUE}. The possible values are: ZERO, SPAN.
CO2 (numeric)
The measured CO2 (carbon dioxide) value. Value can be found in the published state on the co2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is ppm.
L2 (numeric)
Error. Value can be found in the published state on the l2 property. It's not possible to read (/get) or write (/set) this value.
CPU temperature (numeric, l3 endpoint)
Temperature of the CPU. Value can be found in the published state on the temperature_l3 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.
L4 (numeric)
Uptime (seconds). Value can be found in the published state on the l4 property. It's not possible to read (/get) or write (/set) this value.
