Tuya iH-F8260
Model | iH-F8260 |
Vendor | Tuya |
Description | Universal smart IR remote control |
Exposes | switch (state), learned_ir_code, ir_code_to_send, linkquality, battery, voltage |

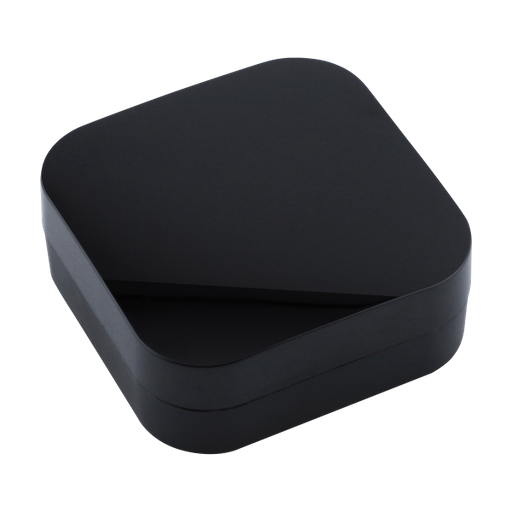

Picture | ![]() |
Exposes
Switch
The current state of this switch is in the published state under the learn_ir_code
property (value is ON
or OFF
). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"learn_ir_code": "ON"}
, {"learn_ir_code": "OFF"}
or {"learn_ir_code": "undefined"}
. It's not possible to read (/get
) this value.
Learned ir code (text)
The IR code learned by device. Value can be found in the published state on the learned_ir_code
property. It's not possible to read (/get
) or write (/set
) this value.
Ir code to send (text)
The IR code to send by device. Value will not be published in the state. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"ir_code_to_send": NEW_VALUE}
.
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 255
. The unit of this value is lqi
.
Battery (numeric)
Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Voltage (numeric)
Voltage of the battery in millivolts. Value can be found in the published state on the voltage
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is mV
.
