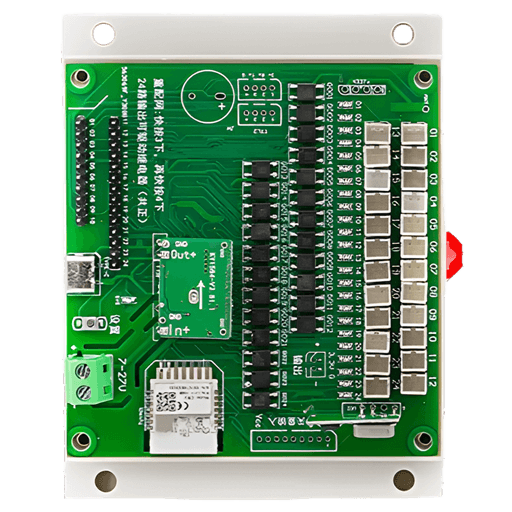

ZYXH ZYXH_switch_24


Model	ZYXH_switch_24
Vendor	ZYXH
Description	24 gang switch
Exposes	switch (state)

The current state of this switch is in the published state under the state_l1 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l1": "ON"}, {"state_l1": "OFF"} or {"state_l1": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l2 endpoint)

The current state of this switch is in the published state under the state_l2 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l2": "ON"}, {"state_l2": "OFF"} or {"state_l2": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l3 endpoint)

The current state of this switch is in the published state under the state_l3 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l3": "ON"}, {"state_l3": "OFF"} or {"state_l3": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l4 endpoint)

The current state of this switch is in the published state under the state_l4 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l4": "ON"}, {"state_l4": "OFF"} or {"state_l4": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l5 endpoint)

The current state of this switch is in the published state under the state_l5 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l5": "ON"}, {"state_l5": "OFF"} or {"state_l5": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l6 endpoint)

The current state of this switch is in the published state under the state_l6 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l6": "ON"}, {"state_l6": "OFF"} or {"state_l6": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l7 endpoint)

The current state of this switch is in the published state under the state_l7 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l7": "ON"}, {"state_l7": "OFF"} or {"state_l7": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l8 endpoint)

The current state of this switch is in the published state under the state_l8 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l8": "ON"}, {"state_l8": "OFF"} or {"state_l8": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l9 endpoint)

The current state of this switch is in the published state under the state_l9 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l9": "ON"}, {"state_l9": "OFF"} or {"state_l9": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l10 endpoint)

The current state of this switch is in the published state under the state_l10 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l10": "ON"}, {"state_l10": "OFF"} or {"state_l10": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l11 endpoint)

The current state of this switch is in the published state under the state_l11 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l11": "ON"}, {"state_l11": "OFF"} or {"state_l11": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l12 endpoint)

The current state of this switch is in the published state under the state_l12 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l12": "ON"}, {"state_l12": "OFF"} or {"state_l12": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l13 endpoint)

The current state of this switch is in the published state under the state_l13 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l13": "ON"}, {"state_l13": "OFF"} or {"state_l13": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l14 endpoint)

The current state of this switch is in the published state under the state_l14 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l14": "ON"}, {"state_l14": "OFF"} or {"state_l14": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l15 endpoint)

The current state of this switch is in the published state under the state_l15 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l15": "ON"}, {"state_l15": "OFF"} or {"state_l15": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l16 endpoint)

The current state of this switch is in the published state under the state_l16 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l16": "ON"}, {"state_l16": "OFF"} or {"state_l16": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l17 endpoint)

The current state of this switch is in the published state under the state_l17 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l17": "ON"}, {"state_l17": "OFF"} or {"state_l17": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l18 endpoint)

The current state of this switch is in the published state under the state_l18 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l18": "ON"}, {"state_l18": "OFF"} or {"state_l18": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l19 endpoint)

The current state of this switch is in the published state under the state_l19 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l19": "ON"}, {"state_l19": "OFF"} or {"state_l19": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l20 endpoint)

The current state of this switch is in the published state under the state_l20 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l20": "ON"}, {"state_l20": "OFF"} or {"state_l20": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l21 endpoint)

The current state of this switch is in the published state under the state_l21 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l21": "ON"}, {"state_l21": "OFF"} or {"state_l21": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l22 endpoint)

The current state of this switch is in the published state under the state_l22 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l22": "ON"}, {"state_l22": "OFF"} or {"state_l22": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l23 endpoint)

The current state of this switch is in the published state under the state_l23 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l23": "ON"}, {"state_l23": "OFF"} or {"state_l23": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l24 endpoint)

The current state of this switch is in the published state under the state_l24 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l24": "ON"}, {"state_l24": "OFF"} or {"state_l24": "TOGGLE"}. It's not possible to read (/get) this value.
