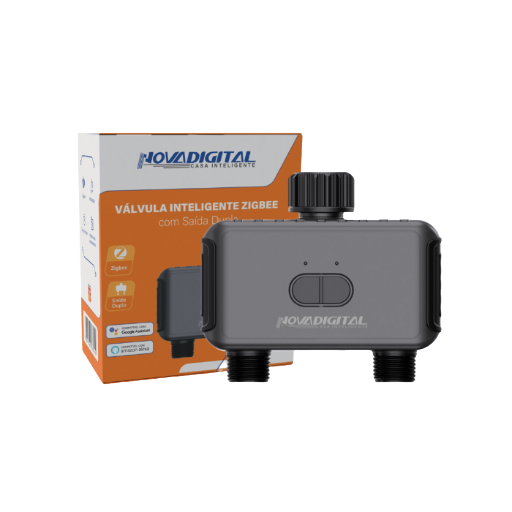

Nova Digital ZVL-DUAL


Model	ZVL-DUAL
Vendor	Nova Digital
Description	Water Valve with 2 zones
Exposes	valve_1, state_1, timer_1, countdown_1, last_duration_1, valve_2, state_2, timer_2, countdown_2, last_duration_2, battery

State of the valve 1. Value can be found in the published state on the valve_1 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"valve_1": NEW_VALUE}. If value equals ON valve 1 is ON, if OFF OFF.

State 1 (enum)

State of the valve 1. Value can be found in the published state on the state_1 property. It's not possible to read (/get) or write (/set) this value. The possible values are: Manual, Auto, Closed.

Timer 1 (numeric)

Timer for the valve 1 operation. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"timer_1": NEW_VALUE}. The minimal value is 1 and the maximum value is 1440. The unit of this value is min.

Countdown 1 (numeric)

Time remaining for the open valve 1. Value can be found in the published state on the countdown_1 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is min.

Last duration 1 (numeric)

Last open duration for the valve 1. Value can be found in the published state on the last_duration_1 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is s.

Valve 2 (binary)

State of the valve 2. Value can be found in the published state on the valve_2 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"valve_2": NEW_VALUE}. If value equals ON valve 2 is ON, if OFF OFF.

State 2 (enum)

State of the valve 2. Value can be found in the published state on the state_2 property. It's not possible to read (/get) or write (/set) this value. The possible values are: Manual, Auto, Closed.

Timer 2 (numeric)

Timer for the valve 2 operation. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"timer_2": NEW_VALUE}. The minimal value is 1 and the maximum value is 1440. The unit of this value is min.

Countdown 2 (numeric)

Time remaining for the open valve 2. Value can be found in the published state on the countdown_2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is min.

Last duration 2 (numeric)

Last open duration for the valve 2. Value can be found in the published state on the last_duration_2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is s.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
