WMUN ZS05

ModelZS05
VendorWMUN
DescriptionUniversal smart IR remote control on batteries
Exposeslearn_ir_code, learned_ir_code, ir_code_to_send, battery

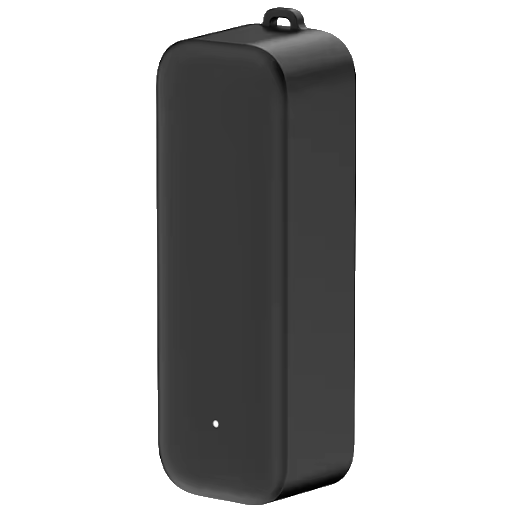

PictureWMUN ZS05

Exposes

Learn ir code (binary)

Turn on to learn new IR code. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"learn_ir_code": NEW_VALUE}. If value equals ON learn ir code is ON, if OFF OFF.

Learned ir code (text)

The IR code learned by device. Value can be found in the published state on the learned_ir_code property. It's not possible to read (/get) or write (/set) this value.

Ir code to send (text)

The IR code to send by device. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"ir_code_to_send": NEW_VALUE}.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
