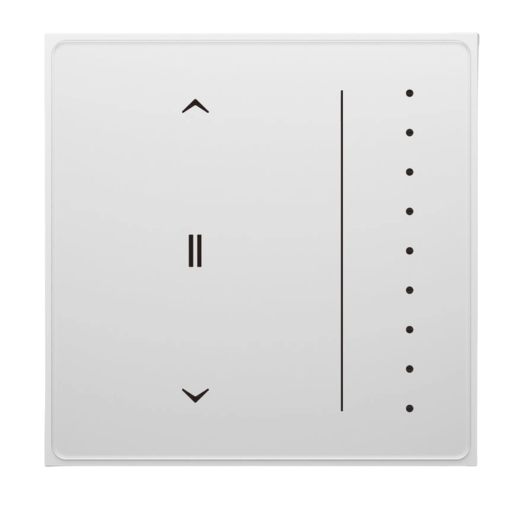

Moes ZS-SF-EUC-WH-MS


Model	ZS-SF-EUC-WH-MS
Vendor	Moes
Description	Star feather Zigbee curtain switch
Exposes	cover (state, position), calibration, backlight_switch, motor_direction, motor_working_time

Options

How to use device type specific configuration

invert_cover: Inverts the cover position and state, false: open=100,close=0, true: open=0,close=100 (default false). The value must be true or false
time_start: Reply to Tuya-specific time synchronization requests: "1970" - Reply with seconds since 1970/01/01 (recommended, should stop the device from asking), "2000" - Reply with seconds since 2000/01/01 (use if the weekday is wrong with 1970), "off" - Don't reply (use if replying causes too much traffic). Default for this device: "off". The value must be one of 1970, 2000, off

The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100.

Calibration (enum)

Calibration mode. Value can be found in the published state on the calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"calibration": NEW_VALUE}. The possible values are: start, end.

Backlight switch (binary)

Enable or disable button backlight. Value can be found in the published state on the backlight_switch property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"backlight_switch": NEW_VALUE}. If value equals ON backlight switch is ON, if OFF OFF.

Motor direction (enum)

Direction of motor movement. Value can be found in the published state on the motor_direction property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motor_direction": NEW_VALUE}. The possible values are: normal, reversed.

Motor working time (numeric)

Full travel time of the motor (10-180s). Value can be found in the published state on the motor_working_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motor_working_time": NEW_VALUE}. The minimal value is 10 and the maximum value is 180. The unit of this value is s.
