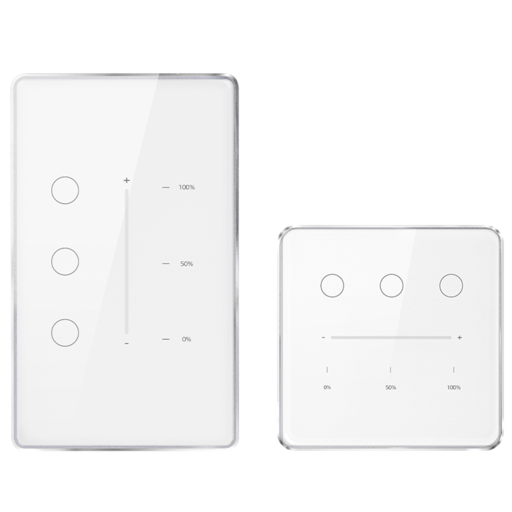

Zemismart ZN2S-RS3E-DH


Model	ZN2S-RS3E-DH
Vendor	Zemismart
Description	3 gang dimmer
Exposes	light (state, brightness, min_brightness, max_brightness), countdown, light_type, power_on_behavior, backlight_mode

Exposes

Light (l1 endpoint)

This light supports the following features: state, brightness, min_brightness, max_brightness.

state: To control the state publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l1": "ON"}, {"state_l1": "OFF"} or {"state_l1": "TOGGLE"}. To read the state send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_l1": ""}.
brightness: To control the brightness publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness_l1": VALUE} where VALUE is a number between 0 and 254. To read the brightness send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness_l1": ""}.

Light (l2 endpoint)

This light supports the following features: state, brightness, min_brightness, max_brightness.

state: To control the state publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l2": "ON"}, {"state_l2": "OFF"} or {"state_l2": "TOGGLE"}. To read the state send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_l2": ""}.
brightness: To control the brightness publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness_l2": VALUE} where VALUE is a number between 0 and 254. To read the brightness send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness_l2": ""}.

Light (l3 endpoint)

This light supports the following features: state, brightness, min_brightness, max_brightness.

state: To control the state publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l3": "ON"}, {"state_l3": "OFF"} or {"state_l3": "TOGGLE"}. To read the state send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_l3": ""}.
brightness: To control the brightness publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness_l3": VALUE} where VALUE is a number between 0 and 254. To read the brightness send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness_l3": ""}.

Countdown (numeric, l1 endpoint)

Countdown to turn device off after a certain time. Value can be found in the published state on the countdown_l1 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"countdown_l1": NEW_VALUE}. The minimal value is 0 and the maximum value is 43200. The unit of this value is s.

Countdown (numeric, l2 endpoint)

Countdown to turn device off after a certain time. Value can be found in the published state on the countdown_l2 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"countdown_l2": NEW_VALUE}. The minimal value is 0 and the maximum value is 43200. The unit of this value is s.

Countdown (numeric, l3 endpoint)

Countdown to turn device off after a certain time. Value can be found in the published state on the countdown_l3 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"countdown_l3": NEW_VALUE}. The minimal value is 0 and the maximum value is 43200. The unit of this value is s.

Light type (enum, l1 endpoint)

Type of light attached to the device. Value can be found in the published state on the light_type_l1 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"light_type_l1": NEW_VALUE}. The possible values are: led, incandescent, halogen.

Light type (enum, l2 endpoint)

Type of light attached to the device. Value can be found in the published state on the light_type_l2 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"light_type_l2": NEW_VALUE}. The possible values are: led, incandescent, halogen.

Light type (enum, l3 endpoint)

Type of light attached to the device. Value can be found in the published state on the light_type_l3 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"light_type_l3": NEW_VALUE}. The possible values are: led, incandescent, halogen.

Power-on behavior (enum)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: off, previous, on.

Backlight mode (enum)

Mode of the backlight. Value can be found in the published state on the backlight_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"backlight_mode": NEW_VALUE}. The possible values are: off, normal, inverted.
