TuYa ZM-35H-Q

ModelZM-35H-Q
VendorTuYa
DescriptionMotion sensor
Exposesoccupancy, battery_low, tamper, battery, sensitivity, keep_time, linkquality

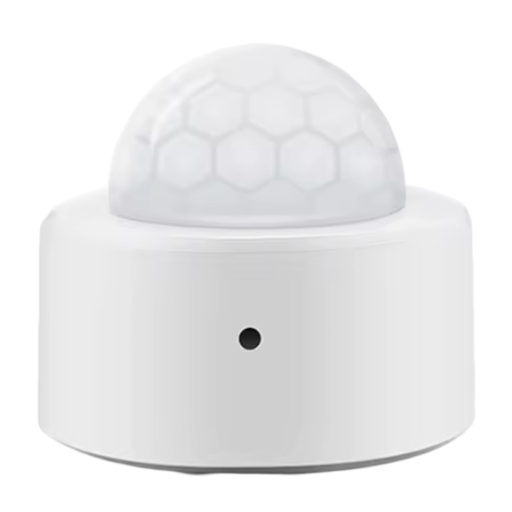

PictureTuYa ZM-35H-Q

Notes

Pairing

To start pairing, press the button (pinhole on the side of the device) using a pin/paperclip for approx. 10 seconds. The led will turn on, then start blinking while the pairing process is in progress.

Reading and Setting Values

As a low power device, the motion sensor isn't reachable most of the time, but only when active (e.g. because it detected motion). Therefore, requests to read or set values (i.e. sensitivity or keep_time) won't be processed right away, typically. Instead, they will be queued and sent on the next occasion.

Exposes

Occupancy (binary)

Indicates whether the device detected occupancy. Value can be found in the published state on the occupancy property. It's not possible to read (/get) or write (/set) this value. If value equals true occupancy is ON, if false OFF.

Battery_low (binary)

Indicates if the battery of this device is almost empty. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery_low is ON, if false OFF.

Tamper (binary)

Indicates whether the device is tampered. Value can be found in the published state on the tamper property. It's not possible to read (/get) or write (/set) this value. If value equals true tamper is ON, if false OFF.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Sensitivity (enum)

PIR sensor sensitivity. Value can be found in the published state on the sensitivity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"sensitivity": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensitivity": NEW_VALUE}. The possible values are: low, medium, high.

Keep_time (enum)

PIR keep time in seconds. Value can be found in the published state on the keep_time property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"keep_time": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"keep_time": NEW_VALUE}. The possible values are: 30, 60, 120.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
