Moes ZHT-S03
Model | ZHT-S03 |
Vendor | Moes |
Description | Zigbee wall thermostat |
Exposes | child_lock, climate (system_mode, current_heating_setpoint, running_state, preset, local_temperature, local_temperature_calibration), temperature_delta, working_day, schedule_weekday, schedule_holiday, frost_protection |

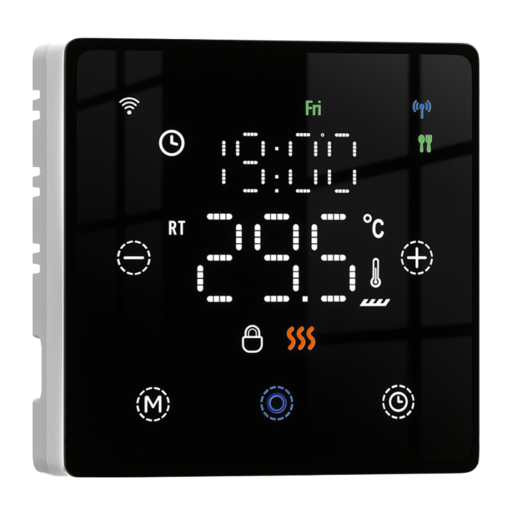

Picture | ![]() |
Exposes
Child lock (binary)
Enables/disables physical input on the device. Value can be found in the published state on the child_lock
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"child_lock": NEW_VALUE}
. If value equals LOCK
child lock is ON, if UNLOCK
OFF.
Climate
This climate device supports the following features: system_mode
, current_heating_setpoint
, running_state
, preset
, local_temperature
, local_temperature_calibration
.
current_heating_setpoint
: Temperature setpoint. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"current_heating_setpoint": VALUE}
whereVALUE
is the °C between5
and35
. Reading (/get
) this attribute is not possible.local_temperature
: Current temperature measured on the device (in °C). Reading (/get
) this attribute is not possible.system_mode
: Mode of this device. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"system_mode": VALUE}
whereVALUE
is one of:off
,heat
. Reading (/get
) this attribute is not possible.preset
: Mode of this device (similar to system_mode). To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"preset": VALUE}
whereVALUE
is one of:schedule
,manual
. Reading (/get
) this attribute is not possible.running_state
: The current running state. Possible values are:idle
,heat
. Reading (/get
) this attribute is not possible.local_temperature_calibration
: Offset to add/subtract to the local temperature. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"local_temperature_calibration": VALUE}.
The minimal value is-9.9
and the maximum value is9.9
with a step size of0.1
.
Temperature delta (numeric)
The delta between local_temperature and current_heating_setpoint to trigger Heat. Value can be found in the published state on the temperature_delta
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"temperature_delta": NEW_VALUE}
. The minimal value is 0.5
and the maximum value is 10
. The unit of this value is °C
. Besides the numeric values the following values are accepted: default
.
Working day (enum)
Workday setting. Value can be found in the published state on the working_day
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"working_day": NEW_VALUE}
. The possible values are: mon_fri
, mon_sat
, mon_sun
.
Schedule weekday (text)
Workdays (6 times hh:mm/cc.c°C
). Value can be found in the published state on the schedule_weekday
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"schedule_weekday": NEW_VALUE}
.
Schedule holiday (text)
Holidays (2 times hh:mm/cc.c°C)
. Value can be found in the published state on the schedule_holiday
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"schedule_holiday": NEW_VALUE}
.
Frost protection (binary)
Antifreeze function. Value can be found in the published state on the frost_protection
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"frost_protection": NEW_VALUE}
. If value equals ON
frost protection is ON, if OFF
OFF.
