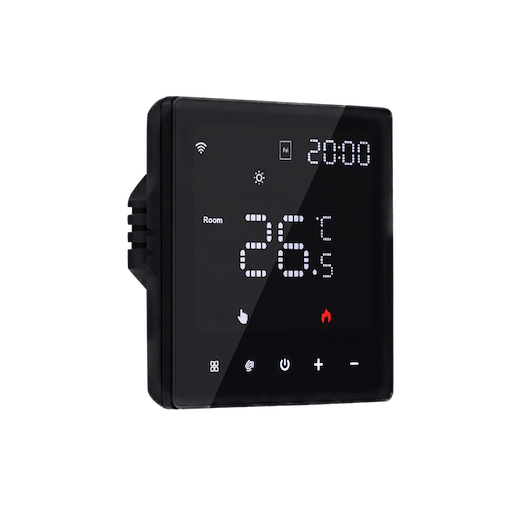

Moes ZHT-S01


Model	ZHT-S01
Vendor	Moes
Description	Zigbee wall thermostat (air/internal temperature priority)
Exposes	child_lock, system_mode, climate (preset, running_state, system_mode, current_heating_setpoint, local_temperature, local_temperature_calibration), floor_temperature, valve_state, sensor, temperature_scale, backlight_brightness, antifreeze, min_temperature_limit, max_temperature_limit, deadzone_temperature, eco_temperature, program_mode, weekly_programming

Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.

System mode (enum)

Thermostat system mode (device enabled/disabled). Value can be found in the published state on the system_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": NEW_VALUE}. The possible values are: off, heat.

Climate

This climate device supports the following features: preset, running_state, system_mode, current_heating_setpoint, local_temperature, local_temperature_calibration.

current_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"current_heating_setpoint": VALUE} where VALUE is the °C between 5 and 35. Reading (/get) this attribute is not possible.
local_temperature: Current temperature measured on the device (in °C). Reading (/get) this attribute is not possible.
preset: Mode of this device (similar to system_mode). To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"preset": VALUE} where VALUE is one of: manual, auto, eco. Reading (/get) this attribute is not possible.
system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: off, heat. Reading (/get) this attribute is not possible.
running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.
local_temperature_calibration: Offset to add/subtract to the local temperature. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"local_temperature_calibration": VALUE}.The minimal value is -9 and the maximum value is 9 with a step size of 1.

Floor temperature (numeric)

Temperature from floor sensor (secondary). Value can be found in the published state on the floor_temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Valve state (binary)

Valve state. Value can be found in the published state on the valve_state property. It's not possible to read (/get) or write (/set) this value. If value equals OPEN valve state is ON, if CLOSED OFF.

Sensor (enum)

Temperature sensor selection. Value can be found in the published state on the sensor property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensor": NEW_VALUE}. The possible values are: internal, external, both.

Temperature scale (enum)

Temperature scale (WARNING: converter only supports Celsius datapoints). Value can be found in the published state on the temperature_scale property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_scale": NEW_VALUE}. The possible values are: celsius, fahrenheit.

Backlight brightness (enum)

Backlight brightness percentage. Value can be found in the published state on the backlight_brightness property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"backlight_brightness": NEW_VALUE}. The possible values are: 0, 20, 50, 100.

Antifreeze (binary)

Antifreeze mode. Value can be found in the published state on the antifreeze property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"antifreeze": NEW_VALUE}. If value equals OFF antifreeze is ON, if ON OFF.

Min temperature limit (numeric)

Minimum temperature limit. Value can be found in the published state on the min_temperature_limit property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_temperature_limit": NEW_VALUE}. The minimal value is 5 and the maximum value is 20. The unit of this value is °C.

Max temperature limit (numeric)

Maximum temperature limit. Value can be found in the published state on the max_temperature_limit property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_temperature_limit": NEW_VALUE}. The minimal value is 30 and the maximum value is 70. The unit of this value is °C.

Deadzone temperature (numeric)

Temperature hysteresis/deadzone. Value can be found in the published state on the deadzone_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"deadzone_temperature": NEW_VALUE}. The minimal value is 0.5 and the maximum value is 3. The unit of this value is °C.

Eco temperature (numeric)

ECO mode temperature setting. Value can be found in the published state on the eco_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"eco_temperature": NEW_VALUE}. The minimal value is 5 and the maximum value is 35. The unit of this value is °C.

Program mode (enum)

Weekly programming mode type. Value can be found in the published state on the program_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"program_mode": NEW_VALUE}. The possible values are: off, weekend, single_break, no_day_off.

Weekly programming (composite)

Time of day and setpoint in weekly programming mode. Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"weekly_programming": {"weekdays_program_1_hour": VALUE, "weekdays_program_1_minute": VALUE, "weekdays_program_1_temperature": VALUE, "weekdays_program_2_hour": VALUE, "weekdays_program_2_minute": VALUE, "weekdays_program_2_temperature": VALUE, "weekdays_program_3_hour": VALUE, "weekdays_program_3_minute": VALUE, "weekdays_program_3_temperature": VALUE, "weekdays_program_4_hour": VALUE, "weekdays_program_4_minute": VALUE, "weekdays_program_4_temperature": VALUE, "weekdays_program_5_hour": VALUE, "weekdays_program_5_minute": VALUE, "weekdays_program_5_temperature": VALUE, "weekdays_program_6_hour": VALUE, "weekdays_program_6_minute": VALUE, "weekdays_program_6_temperature": VALUE, "weekend_program_1_hour": VALUE, "weekend_program_1_minute": VALUE, "weekend_program_1_temperature": VALUE, "weekend_program_2_hour": VALUE, "weekend_program_2_minute": VALUE, "weekend_program_2_temperature": VALUE}}

weekdays_program_1_hour (numeric) max value is 23
weekdays_program_1_minute (numeric) max value is 59
weekdays_program_1_temperature (numeric) min value is 5, max value is 35, unit is °C
weekdays_program_2_hour (numeric) max value is 23
weekdays_program_2_minute (numeric) max value is 59
weekdays_program_2_temperature (numeric) min value is 5, max value is 35, unit is °C
weekdays_program_3_hour (numeric) max value is 23
weekdays_program_3_minute (numeric) max value is 59
weekdays_program_3_temperature (numeric) min value is 5, max value is 35, unit is °C
weekdays_program_4_hour (numeric) max value is 23
weekdays_program_4_minute (numeric) max value is 59
weekdays_program_4_temperature (numeric) min value is 5, max value is 35, unit is °C
weekdays_program_5_hour (numeric) max value is 23
weekdays_program_5_minute (numeric) max value is 59
weekdays_program_5_temperature (numeric) min value is 5, max value is 35, unit is °C
weekdays_program_6_hour (numeric) max value is 23
weekdays_program_6_minute (numeric) max value is 59
weekdays_program_6_temperature (numeric) min value is 5, max value is 35, unit is °C
weekend_program_1_hour (numeric) max value is 23
weekend_program_1_minute (numeric) max value is 59
weekend_program_1_temperature (numeric) min value is 5, max value is 35, unit is °C
weekend_program_2_hour (numeric) max value is 23
weekend_program_2_minute (numeric) max value is 59
weekend_program_2_temperature (numeric) min value is 5, max value is 35, unit is °C
