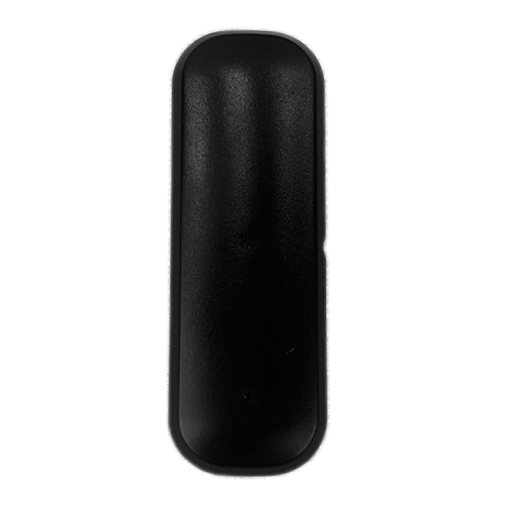

HOBEIAN ZG-IR01


Model	ZG-IR01
Vendor	HOBEIAN
Description	Smart IR remote switch
Exposes	switch1, switch2, switch3, switch4, switch5, switch6, temperature, humidity, switch1_on, switch1_off, switch2_on, switch2_off, switch3_on, switch3_off, switch4_on, switch4_off, switch5_on, switch5_off, switch6_on, switch6_off, temperature_unit, temperature_calibration, humidity_calibration, battery

Notes

If you have additional technical problems, please email Technical support at [szalarm@qq.com]

Options

How to use device type specific configuration

temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.
humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

IR Switch1. Value can be found in the published state on the switch1 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch1": NEW_VALUE}. If value equals ON switch1 is ON, if OFF OFF.

Switch2 (binary)

IR Switch2. Value can be found in the published state on the switch2 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch2": NEW_VALUE}. If value equals ON switch2 is ON, if OFF OFF.

Switch3 (binary)

IR Switch3. Value can be found in the published state on the switch3 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch3": NEW_VALUE}. If value equals ON switch3 is ON, if OFF OFF.

Switch4 (binary)

IR Switch4. Value can be found in the published state on the switch4 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch4": NEW_VALUE}. If value equals ON switch4 is ON, if OFF OFF.

Switch5 (binary)

IR Switch5. Value can be found in the published state on the switch5 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch5": NEW_VALUE}. If value equals ON switch5 is ON, if OFF OFF.

Switch6 (binary)

IR Switch6. Value can be found in the published state on the switch6 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch6": NEW_VALUE}. If value equals ON switch6 is ON, if OFF OFF.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Switch1 on (enum)

Switch 1 on IR code Study and Study status. Value can be found in the published state on the switch1_on property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch1_on": NEW_VALUE}. The possible values are: study, registered, unregistered.

Switch1 off (enum)

Switch 1 off IR code Study and Study status. Value can be found in the published state on the switch1_off property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch1_off": NEW_VALUE}. The possible values are: study, registered, unregistered.

Switch2 on (enum)

Switch 2 on IR code Study and Study status. Value can be found in the published state on the switch2_on property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch2_on": NEW_VALUE}. The possible values are: study, registered, unregistered.

Switch2 off (enum)

Switch 2 off IR code Study and Study status. Value can be found in the published state on the switch2_off property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch2_off": NEW_VALUE}. The possible values are: study, registered, unregistered.

Switch3 on (enum)

Switch 3 on IR code Study and Study status. Value can be found in the published state on the switch3_on property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch3_on": NEW_VALUE}. The possible values are: study, registered, unregistered.

Switch3 off (enum)

Switch 3 off IR code Study and Study status. Value can be found in the published state on the switch3_off property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch3_off": NEW_VALUE}. The possible values are: study, registered, unregistered.

Switch4 on (enum)

Switch 4 on IR code Study and Study status. Value can be found in the published state on the switch4_on property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch4_on": NEW_VALUE}. The possible values are: study, registered, unregistered.

Switch4 off (enum)

Switch 4 off IR code Study and Study status. Value can be found in the published state on the switch4_off property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch4_off": NEW_VALUE}. The possible values are: study, registered, unregistered.

Switch5 on (enum)

Switch 5 on IR code Study and Study status. Value can be found in the published state on the switch5_on property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch5_on": NEW_VALUE}. The possible values are: study, registered, unregistered.

Switch5 off (enum)

Switch 5 off IR code Study and Study status. Value can be found in the published state on the switch5_off property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch5_off": NEW_VALUE}. The possible values are: study, registered, unregistered.

Switch6 on (enum)

Switch 6 on IR code Study and Study status. Value can be found in the published state on the switch6_on property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch6_on": NEW_VALUE}. The possible values are: study, registered, unregistered.

Switch6 off (enum)

Switch 6 off IR code Study and Study status. Value can be found in the published state on the switch6_off property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch6_off": NEW_VALUE}. The possible values are: study, registered, unregistered.

Temperature unit (enum)

Temperature unit. Value can be found in the published state on the temperature_unit property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_unit": NEW_VALUE}. The possible values are: celsius, fahrenheit.

Temperature calibration (numeric)

Temperature calibration. Value can be found in the published state on the temperature_calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_calibration": NEW_VALUE}. The minimal value is -2 and the maximum value is 2. The unit of this value is °C.

Humidity calibration (numeric)

Humidity calibration. Value can be found in the published state on the humidity_calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"humidity_calibration": NEW_VALUE}. The minimal value is -30 and the maximum value is 30. The unit of this value is %.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
