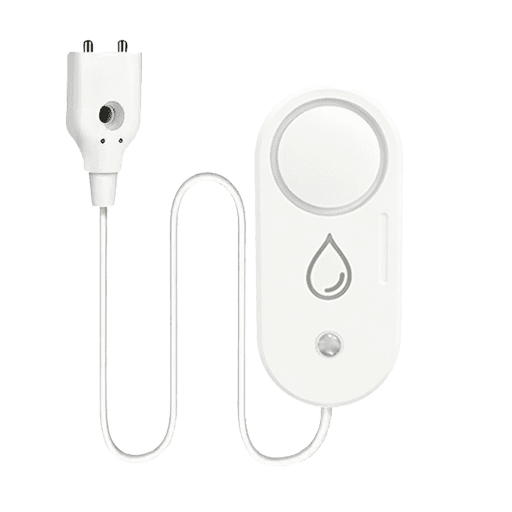

HOBEIAN ZG-226Z


Model	ZG-226Z
Vendor	HOBEIAN
Description	Water leak alarm
Exposes	water_leak, alarm, muffling, alarm_time, alarm_volume, alarm_ring, battery

Indicates whether the device detected a water leak. Value can be found in the published state on the water_leak property. It's not possible to read (/get) or write (/set) this value. If value equals true water leak is ON, if false OFF.

Alarm (binary)

Audible and visual alarm. Value can be found in the published state on the alarm property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm": NEW_VALUE}. If value equals ON alarm is ON, if OFF OFF.

Muffling (binary)

Stop alarm. Value can be found in the published state on the muffling property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"muffling": NEW_VALUE}. If value equals ON muffling is ON, if OFF OFF.

Alarm time (numeric)

Alarm sounding time. Value can be found in the published state on the alarm_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_time": NEW_VALUE}. The minimal value is 0 and the maximum value is 1800. The unit of this value is s.

Alarm volume (enum)

Alarm Volume. Value can be found in the published state on the alarm_volume property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_volume": NEW_VALUE}. The possible values are: low, middle, high, mute.

Alarm ring (enum)

Alarm Volume. Value can be found in the published state on the alarm_ring property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_ring": NEW_VALUE}. The possible values are: mute, beep, music.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
