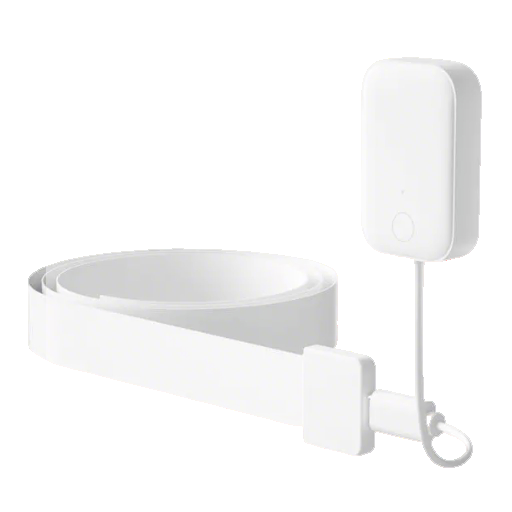

HOBEIAN ZG-210Z

Model	ZG-210Z
Vendor	HOBEIAN
Description	Pressure Sensing Strap/Bed Occupancy Sensor
Exposes	pressure_state, current_pressure, temperature, humidity, battery, pressure_intensity, presence_delay, sedentary_reminder, temperature_calibration, humidity_calibration

Options

How to use device type specific configuration

• temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.

• temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

• humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.

• humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

Exposes

Pressure state (enum)

Pressure state,none: Vacant,sit: Sitting,sedentary: Sedentary. Value can be found in the published state on the pressure_state property. It's not possible to read (/get) or write (/set) this value. The possible values are: none, sit, sedentary.

Current pressure (numeric)

Sensing pressure value. Value can be found in the published state on the current_pressure property. It's not possible to read (/get) or write (/set) this value. The unit of this value is x.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Pressure intensity (numeric)

Set Sensing pressure intensity value. Value can be found in the published state on the pressure_intensity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"pressure_intensity": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pressure_intensity": NEW_VALUE}. The minimal value is 0 and the maximum value is 2000. The unit of this value is x.

Presence delay (numeric)

Delay to report no presence. Value can be found in the published state on the presence_delay property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"presence_delay": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"presence_delay": NEW_VALUE}. The minimal value is 0 and the maximum value is 3600. The unit of this value is s.

Sedentary reminder (numeric)

Set sedentary Reminder Time. Value can be found in the published state on the sedentary_reminder property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"sedentary_reminder": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sedentary_reminder": NEW_VALUE}. The minimal value is 0 and the maximum value is 1440. The unit of this value is minutes.

Temperature calibration (numeric)

Temperature calibration. Value can be found in the published state on the temperature_calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_calibration": NEW_VALUE}. The minimal value is -2 and the maximum value is 2. The unit of this value is °C.

Humidity calibration (numeric)

Humidity calibration. Value can be found in the published state on the humidity_calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"humidity_calibration": NEW_VALUE}. The minimal value is -30 and the maximum value is 30. The unit of this value is %.
