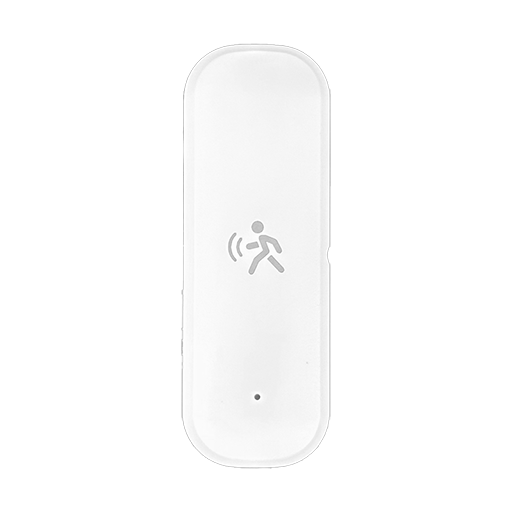

HOBEIAN ZG-204ZE


Model	ZG-204ZE
Vendor	HOBEIAN
Description	10G mw motion detection
Exposes	presence, battery, fading_time, indicator, motion_detection_sensitivity

To start pairing, press the button (pinhole on the side of the device) using a pin/paperclip for approx. 10 seconds. The led will turn on, then start blinking while the pairing process is in progress.

Reading and Setting Values

As a low power device, the motion sensor isn't reachable most of the time, but only when active (e.g. because it detected motion). Therefore, requests to read or set values (i.e. sensitivity or keep_time) will only work when the sensor detects motion.

Exposes

Presence (binary)

Indicates whether the device detected presence. Value can be found in the published state on the presence property. It's not possible to read (/get) or write (/set) this value. If value equals true presence is ON, if false OFF.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Fading time (numeric)

Motion keep time. Value can be found in the published state on the fading_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fading_time": NEW_VALUE}. The minimal value is 0 and the maximum value is 28800. The unit of this value is s.

Indicator (binary)

LED indicator mode. Value can be found in the published state on the indicator property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"indicator": NEW_VALUE}. If value equals ON indicator is ON, if OFF OFF.

Motion detection sensitivity (numeric)

The larger the value, the more sensitive it is (refresh and update only while active). Value can be found in the published state on the motion_detection_sensitivity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motion_detection_sensitivity": NEW_VALUE}. The minimal value is 0 and the maximum value is 19. The unit of this value is x.
