TuYa ZG-102Z

Model	ZG-102Z
Vendor	TuYa

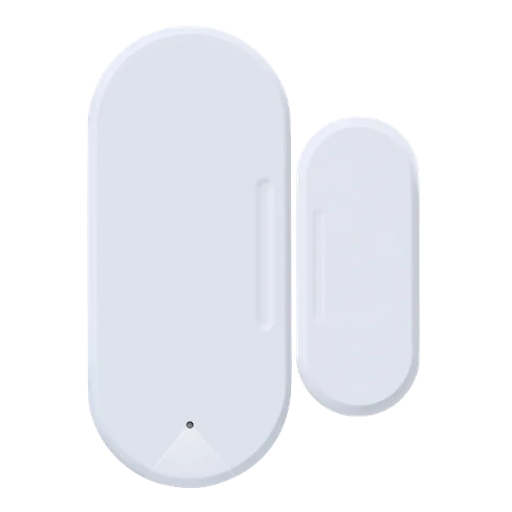

Description	Door sensor
Exposes	contact, battery, linkquality

Notes

Pairing

To start pairing, press the button (pinhole on the side of the device) using a pin/paperclip for approx. 5 seconds. The led will turn on, then start blinking while the pairing process is in progress.

Exposes

Contact (binary)

Indicates if the contact is closed (= true) or open (= false). Value can be found in the published state on the contact property. It's not possible to read (/get) or write (/set) this value. If value equals false contact is ON, if true OFF.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
