TuYa YXZBRB58

ModelYXZBRB58
VendorTuYa
DescriptionSmart human presence sensor
Exposesilluminance_lux, presence, target_distance, radar_sensitivity, minimum_range, maximum_range, detection_delay, fading_time, radar_scene, linkquality

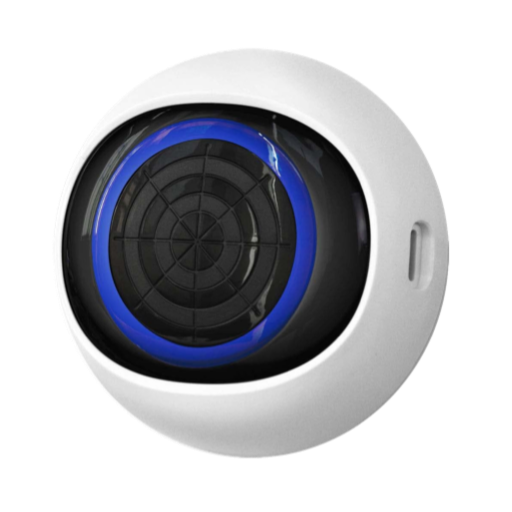

PictureTuYa YXZBRB58

Options

How to use device type specific configuration

  • illuminance_lux_calibration: Calibrates the illuminance_lux value (percentual offset), takes into effect on next report of device. The value must be a number.

Exposes

Illuminance (lux) (numeric)

Measured illuminance in lux. Value can be found in the published state on the illuminance_lux property. It's not possible to read (/get) or write (/set) this value. The unit of this value is lx.

Presence (binary)

Indicates whether the device detected presence. Value can be found in the published state on the presence property. It's not possible to read (/get) or write (/set) this value. If value equals true presence is ON, if false OFF.

Target distance (numeric)

Distance to target. Value can be found in the published state on the target_distance property. It's not possible to read (/get) or write (/set) this value. The unit of this value is m.

Radar sensitivity (numeric)

Sensitivity of the radar. Value can be found in the published state on the radar_sensitivity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"radar_sensitivity": NEW_VALUE}. The minimal value is 0 and the maximum value is 9.

Minimum range (numeric)

Minimum range. Value can be found in the published state on the minimum_range property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"minimum_range": NEW_VALUE}. The minimal value is 0 and the maximum value is 10. The unit of this value is m.

Maximum range (numeric)

Maximum range. Value can be found in the published state on the maximum_range property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"maximum_range": NEW_VALUE}. The minimal value is 0 and the maximum value is 10. The unit of this value is m.

Detection delay (numeric)

Detection delay. Value can be found in the published state on the detection_delay property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"detection_delay": NEW_VALUE}. The minimal value is 0 and the maximum value is 10. The unit of this value is s.

Fading time (numeric)

Fading time. Value can be found in the published state on the fading_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fading_time": NEW_VALUE}. The minimal value is 0 and the maximum value is 1500. The unit of this value is s.

Radar scene (enum)

Presets for sensitivity for presence and movement. Value can be found in the published state on the radar_scene property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"radar_scene": NEW_VALUE}. The possible values are: default, bathroom, bedroom, sleeping.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
