Yale YRL226 TS

ModelYRL226 TS
VendorYale
DescriptionAssure lock SL
Exposeslock (state, lock_state), battery, pin_code, linkquality

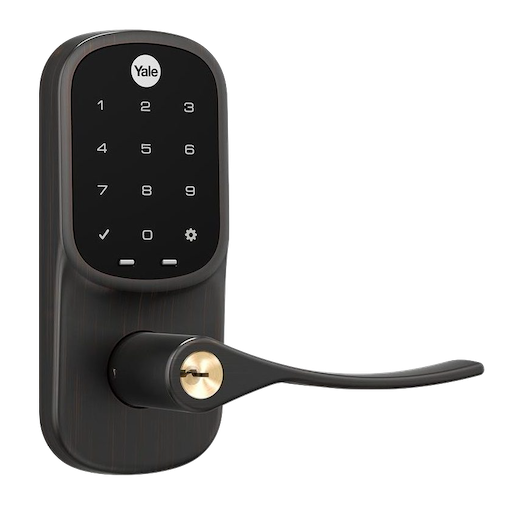

PictureYale YRL226 TS

Options

How to use device type specific configuration

  • expose_pin: Expose pin of this lock in the published payload (default false). The value must be true or false

Exposes

Lock

The current state of this lock is in the published state under the state property (value is LOCK or UNLOCK). To control this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "LOCK"} or {"state": "UNLOCK"}. To read the current state of this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}. This lock exposes a lock state which can be found in the published state under the lock_state property. It's not possible to read (/get) or write (/set) this value. The possible values are: not_fully_locked, locked, unlocked.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Pin_code (composite)

Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"pin_code": {"user": VALUE, "user_type": VALUE, "user_enabled": VALUE, "pin_code": VALUE}}

  • user (numeric): User ID to set or clear the pincode for.
  • user_type (enum): Type of user, unrestrictied: owner (default), (year|week)_day_schedule: user has ability to open lock based on specific time period, master: user has ability to both program and operate the door lock, non_access: user is recognized by the lock but does not have the ability to open the lock. Allowed values: unrestricted, year_day_schedule, week_day_schedule, master, non_access
  • user_enabled (binary): Whether the user is enabled/disabled. Allowed values: true or false
  • pin_code (numeric): Pincode to set, set pincode to null to clear.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
