Yale YRD256HA20BP #

Model YRD256HA20BP
Vendor Yale
Description Assure lock SL
Exposes lock (state), battery, linkquality

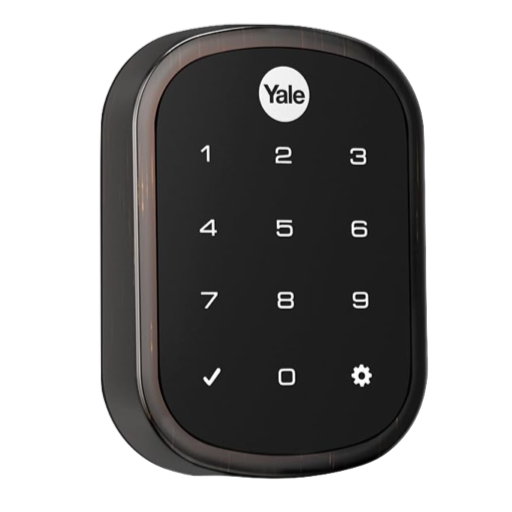

Picture Yale YRD256HA20BP

Notes #

None

Exposes #

Lock #

The current state of this lock is in the published state under the state property (value is LOCK or UNLOCK). To control this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "LOCK"} or {"state": "UNLOCK"}. To read the current state of this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

Battery (numeric) #

Remaining battery in %. Value can be found in the published state on the battery property. It’s not possible to read (/get) or write (/set) this value. The minimimal value is 0 and the maximum value is 100. The unit of this value is %.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

lock:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    value_template: "{{ value_json.state }}"
    state_locked: "LOCK"
    state_unlocked: "UNLOCK"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    unit_of_measurement: "%"
    value_template: "{{ value_json.battery }}"
    device_class: "battery"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    unit_of_measurement: "lqi"
    value_template: "{{ value_json.linkquality }}"
    icon: "mdi:signal"
