Yandex YNDX_00535

ModelYNDX_00535
VendorYandex
DescriptionDouble gang wireless switch
Exposesbattery, action

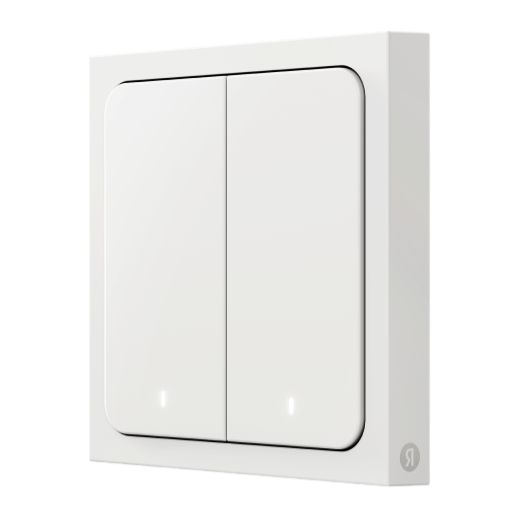

PictureYandex YNDX_00535

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on_b1_up, on_b1_down, on_b2_up, on_b2_down, off_b1_up, off_b1_down, off_b2_up, off_b2_down, toggle_b1_up, toggle_b1_down, toggle_b2_up, toggle_b2_down.
