Yandex YNDX_00532

ModelYNDX_00532
VendorYandex
DescriptionDouble gang switch
Exposesswitch (state), power_on_behavior, power_type, operation_mode, led_indicator, action

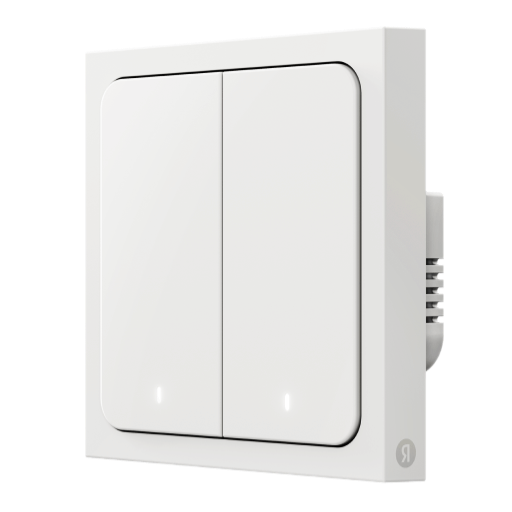

PictureYandex YNDX_00532

Options

How to use device type specific configuration

  • state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Switch (1 endpoint)

The current state of this switch is in the published state under the state_1 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_1": "ON"}, {"state_1": "OFF"} or {"state_1": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_1": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Switch (2 endpoint)

The current state of this switch is in the published state under the state_2 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_2": "ON"}, {"state_2": "OFF"} or {"state_2": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_2": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Power-on behavior (enum, 1 endpoint)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_on_behavior_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior_1": NEW_VALUE}. The possible values are: off, on, toggle, previous.

Power-on behavior (enum, 2 endpoint)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_on_behavior_2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior_2": NEW_VALUE}. The possible values are: off, on, toggle, previous.

Power type (enum)

Power supply type. Value can be found in the published state on the power_type property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_type": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_type": NEW_VALUE}. The possible values are: full, low, medium, high.

Operation mode (enum, 1 endpoint)

Switch mode (control_relay - the button control the relay, decoupled - button send events when pressed). Value can be found in the published state on the operation_mode_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"operation_mode_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"operation_mode_1": NEW_VALUE}. The possible values are: control_relay, up_decoupled, decoupled, down_decoupled.

Operation mode (enum, 2 endpoint)

Switch mode (control_relay - the buttons control the relay, decoupled - buttons send events when pressed). Value can be found in the published state on the operation_mode_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"operation_mode_2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"operation_mode_2": NEW_VALUE}. The possible values are: control_relay, up_decoupled, decoupled, down_decoupled.

Led indicator (binary)

Led indicator. Value can be found in the published state on the led_indicator property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_indicator": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_indicator": NEW_VALUE}. If value equals ON led indicator is ON, if OFF OFF.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on_b1_up, on_b1_down, on_b2_up, on_b2_down, off_b1_up, off_b1_down, off_b2_up, off_b2_down, toggle_b1_up, toggle_b1_down, toggle_b2_up, toggle_b2_down.
