Yale YMF40/YDM4109+/YDF40
Model | YMF40/YDM4109+/YDF40 |
Vendor | Yale |
Description | Real living lock / Intelligent biometric digital lock |
Exposes | lock (state, lock_state), battery, pin_code, action_source_name, action_user, auto_relock_time, sound_volume, battery_low, action, linkquality |

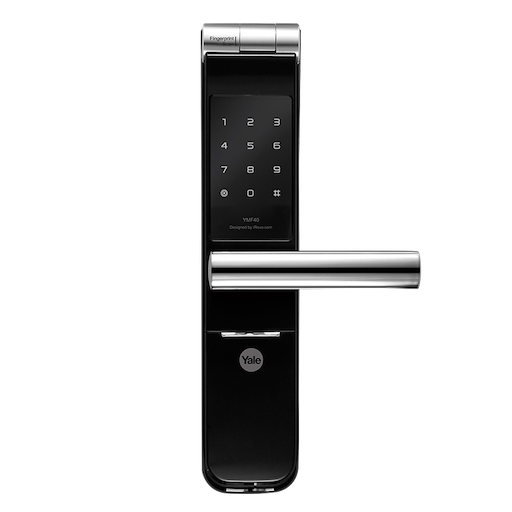

Picture |
Options
How to use device type specific configuration
expose_pin
: Expose pin of this lock in the published payload (default false). The value must betrue
orfalse
Exposes
Lock
The current state of this lock is in the published state under the state
property (value is LOCK
or UNLOCK
). To control this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state": "LOCK"}
or {"state": "UNLOCK"}
. To read the current state of this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"state": ""}
. This lock exposes a lock state which can be found in the published state under the lock_state
property. It's not possible to read (/get
) or write (/set
) this value. The possible values are: not_fully_locked
, locked
, unlocked
.
Battery (numeric)
Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Pin code (composite)
Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set
with payload {"pin_code": {"user": VALUE, "user_type": VALUE, "user_enabled": VALUE, "pin_code": VALUE}}
To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"pin_code": ""}
.
user
(numeric): User ID to set or clear the pincode foruser_type
(enum): Type of user, unrestricted: owner (default), (year|week)_day_schedule: user has ability to open lock based on specific time period, master: user has ability to both program and operate the door lock, non_access: user is recognized by the lock but does not have the ability to open the lock allowed values:unrestricted
,year_day_schedule
,week_day_schedule
,master
,non_access
user_enabled
(binary): Whether the user is enabled/disabled allowed values:true
orfalse
pin_code
(numeric): Pincode to set, set pincode to null to clear
Action source name (enum)
Source of the triggered action on the lock. Value can be found in the published state on the action_source_name
property. It's not possible to read (/get
) or write (/set
) this value. The possible values are: keypad
, rfid
, manual
, rf
.
Action user (numeric)
ID of user that triggered the action on the lock. Value can be found in the published state on the action_user
property. It's not possible to read (/get
) or write (/set
) this value.
Auto relock time (numeric)
The number of seconds to wait after unlocking a lock before it automatically locks again. 0=disabled. Value can be found in the published state on the auto_relock_time
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"auto_relock_time": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"auto_relock_time": NEW_VALUE}
. The minimal value is 0
and the maximum value is 3600
. The unit of this value is s
.
Sound volume (enum)
Sound volume of the lock. Value can be found in the published state on the sound_volume
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"sound_volume": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"sound_volume": NEW_VALUE}
. The possible values are: silent_mode
, low_volume
, high_volume
.
Battery low (binary)
Indicates if the battery of this device is almost empty. Value can be found in the published state on the battery_low
property. It's not possible to read (/get
) or write (/set
) this value. If value equals true
battery low is ON, if false
OFF.
Action (enum)
Triggered action (e.g. a button click). Value can be found in the published state on the action
property. It's not possible to read (/get
) or write (/set
) this value. The possible values are: unknown
, lock
, unlock
, lock_failure_invalid_pin_or_id
, lock_failure_invalid_schedule
, unlock_failure_invalid_pin_or_id
, unlock_failure_invalid_schedule
, one_touch_lock
, key_lock
, key_unlock
, auto_lock
, schedule_lock
, schedule_unlock
, manual_lock
, manual_unlock
, non_access_user_operational_event
.
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 255
. The unit of this value is lqi
.
