Bacchus Water_Station

ModelWater_Station
VendorBacchus
DescriptionWater_Station
Exposespump_1, pump_1_duration, pump_2, pump_3_duration, pump_3, pump_all, beeper, beeper_on_leak, water_leak, full

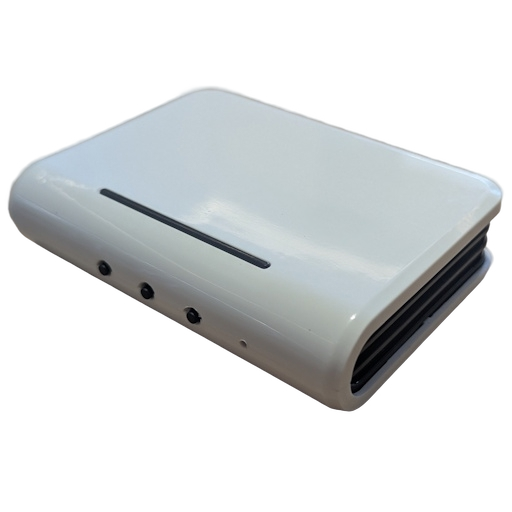

PictureBacchus Water_Station

Original project description

Exposes

Pump 1 (binary, 1 endpoint)

Enable first pump. Value can be found in the published state on the pump_1_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"pump_1_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pump_1_1": NEW_VALUE}. If value equals ON pump 1 is ON, if OFF OFF.

Pump 1 duration (numeric, 1 endpoint)

Duration of pump 1. Value can be found in the published state on the pump_1_duration_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"pump_1_duration_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pump_1_duration_1": NEW_VALUE}. The minimal value is 0 and the maximum value is 600. The unit of this value is sec.

Pump 2 (binary, 2 endpoint)

Enable second pump. Value can be found in the published state on the pump_2_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"pump_2_2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pump_2_2": NEW_VALUE}. If value equals ON pump 2 is ON, if OFF OFF.

Pump 3 duration (numeric, 2 endpoint)

Duration of pump 2. Value can be found in the published state on the pump_3_duration_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"pump_3_duration_2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pump_3_duration_2": NEW_VALUE}. The minimal value is 0 and the maximum value is 600. The unit of this value is sec.

Pump 3 (binary, 3 endpoint)

Enable third pump. Value can be found in the published state on the pump_3_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"pump_3_3": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pump_3_3": NEW_VALUE}. If value equals ON pump 3 is ON, if OFF OFF.

Pump 3 duration (numeric, 3 endpoint)

Duration of pump 3. Value can be found in the published state on the pump_3_duration_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"pump_3_duration_3": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pump_3_duration_3": NEW_VALUE}. The minimal value is 0 and the maximum value is 600. The unit of this value is sec.

Pump all (binary, 4 endpoint)

Enable all pumps. Value can be found in the published state on the pump_all_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"pump_all_4": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pump_all_4": NEW_VALUE}. If value equals ON pump all is ON, if OFF OFF.

Beeper (binary, 5 endpoint)

Beeper. Value can be found in the published state on the beeper_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"beeper_5": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"beeper_5": NEW_VALUE}. If value equals ON beeper is ON, if OFF OFF.

Beeper on leak (binary, 1 endpoint)

Beeper. Value can be found in the published state on the beeper_on_leak_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"beeper_on_leak_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"beeper_on_leak_1": NEW_VALUE}. If value equals ON beeper on leak is ON, if OFF OFF.

Water leak (binary)

Indicates whether the device detected a water leak. Value can be found in the published state on the water_leak property. It's not possible to read (/get) or write (/set) this value. If value equals true water leak is ON, if false OFF.

Full (binary)

Indicates whether the water tank is full. Value can be found in the published state on the full property. It's not possible to read (/get) or write (/set) this value. If value equals true full is ON, if false OFF.
