Aqara WXKG12LM

ModelWXKG12LM
VendorAqara
DescriptionWireless mini switch (with gyroscope)
Exposesbattery, voltage, action

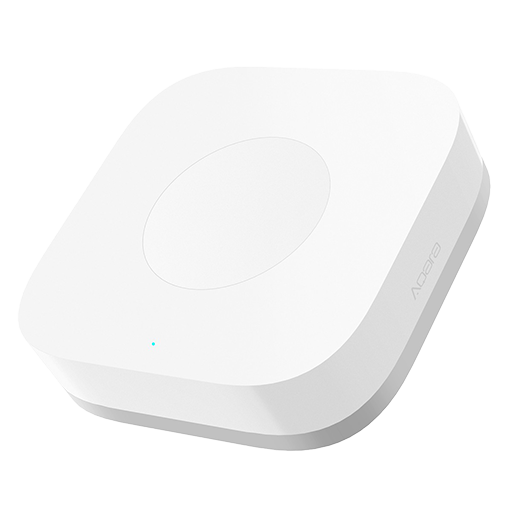

PictureAqara WXKG12LM

Notes

Deprecated click event

By default this device exposes a deprecated click event. It's recommended to use the action event instead.

To disable the click event, set legacy: false for this device in configuration.yaml. Example:

devices:
  '0x12345678':
    friendly_name: my_device
    legacy: false

Pairing

Press and hold the reset button on the device for +- 5 seconds (until the blue light starts blinking). After this the device will automatically join. If this doesn't work, try with a single short button press.

Troubleshooting: device stops sending messages/disconnects from network

Since Xiaomi devices do not fully comply to the Zigbee standard, it sometimes happens that they disconnect from the network. Most of the times this happens because of the following reasons:

  • Device has a weak signal, you can see the signal quality in the published messages as linkquality. A linkquality < 20 is considered weak.
  • Low battery voltage, this can even happen when the battery still appears full. Try a different battery.
  • The device is connected through a router which cannot deal with Xiaomi devices. This is known to happen devices from: Centralite, General Electric, Iris, Ledvance, Legrand, OSRAM, Sylvania, SmartThings, Securifi. A possible solution is to connect the device directly to the central coordinator by pushing the reset button while being physically close to it.

More detailed information about this can be found here.

Exposes

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric)

Voltage of the battery in millivolts. Value can be found in the published state on the voltage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is mV.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: single, double, hold, release, shake.
