Xiaomi WXKG02LM_rev2 #

Model WXKG02LM_rev2
Vendor Xiaomi
Description Aqara double key wireless wall switch (2018 model)
Exposes battery, action, voltage, linkquality

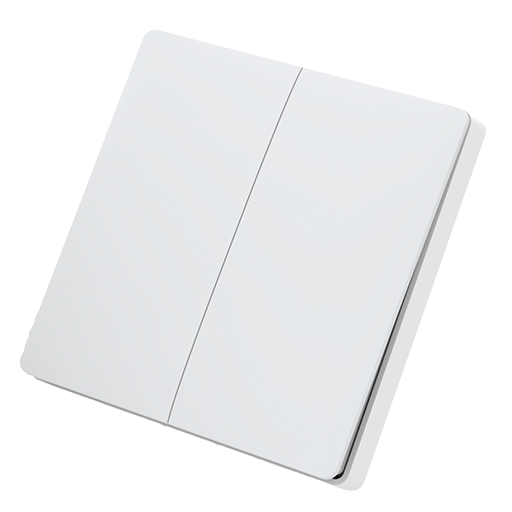

Picture Xiaomi WXKG02LM_rev2

Notes #

Deprecated click event #

By default this device exposes a deprecated click event. It’s recommended to use the action event instead.

To disable the click event, set legacy: false for this device in configuration.yaml. Example:

devices:
  '0x12345678':
    friendly_name: my_device
    legacy: false

Pairing #

Press and hold the button on the device for +- 10 seconds (until the blue light starts blinking and stops blinking), release and wait.

You may have to unpair the switch from an existing coordinator before the pairing process will start.

Device type specific configuration #

How to use device type specific configuration

Exposes #

Battery (numeric) #

Remaining battery in %. Value can be found in the published state on the battery property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Action (enum) #

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It’s not possible to read (/get) or write (/set) this value. The possible values are: single_left, single_right, single_both, double_left, double_right, double_both, hold_left, hold_right, hold_both.

Voltage (numeric) #

Voltage of the battery in millivolts. Value can be found in the published state on the voltage property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is mV.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    icon: "mdi:toggle-switch"
    value_template: "{{ value_json.click }}"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.battery }}"
    unit_of_measurement: "%"
    device_class: "battery"
    state_class: "measurement"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.action }}"
    icon: "mdi:gesture-double-tap"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.voltage }}"
    unit_of_measurement: "mV"
    device_class: "voltage"
    enabled_by_default: false
    state_class: "measurement"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    enabled_by_default: false
    icon: "mdi:signal"
    state_class: "measurement"
