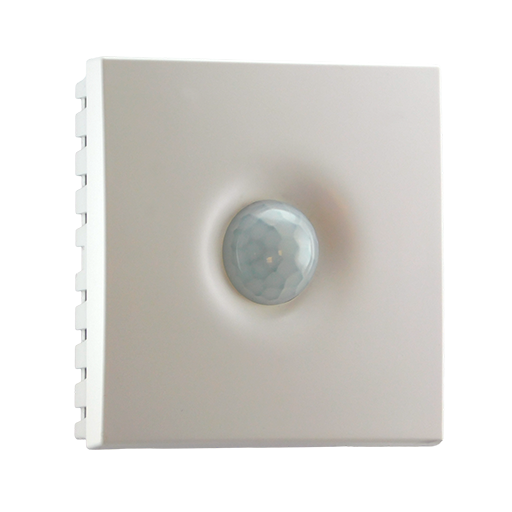

Wiren Board WB-MSW-ZIGBEE_v.4_official


Model	WB-MSW-ZIGBEE_v.4_official
Vendor	Wiren Board
Description	Wall-mounted multi sensor with official Wiren Board firmware
Exposes	switch (state), illuminance, temperature, humidity, occupancy, co2, noise_level, noise, noise_threshold, noise_timeout, status_led, connectivity, modbus_slave_id, serial_number, fw_version, fw_signature, boot_version, component_version, component_signature, temperature_offset, occupancy_level, occupancy_sensitivity, occupancy_timeout, voc

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

illuminance_calibration: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.
temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.
humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
co2_calibration: Calibrates the co2 value (absolute offset), takes into effect on next report of device. The value must be a number.
voc_calibration: Calibrates the voc value (absolute offset), takes into effect on next report of device. The value must be a number.
state_action: State actions will also be published as 'action' when true (default false). The value must be true or false
illuminance_raw: Expose the raw illuminance value. The value must be true or false
no_occupancy_since: Sends a message after the last time no occupancy (occupancy: false) was detected. When setting this for example to [10, 60] a {"no_occupancy_since": 10} will be sent after 10 seconds and a {"no_occupancy_since": 60} after 60 seconds. The value must be a list of numbers.

The current state of this switch is in the published state under the state_buzzer property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_buzzer": "ON"}, {"state_buzzer": "OFF"} or {"state_buzzer": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_buzzer": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Switch (heater endpoint)

The current state of this switch is in the published state under the state_heater property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_heater": "ON"}, {"state_heater": "OFF"} or {"state_heater": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_heater": ""}.

On with timed off

Switch (led_red endpoint)

The current state of this switch is in the published state under the state_led_red property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_led_red": "ON"}, {"state_led_red": "OFF"} or {"state_led_red": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_led_red": ""}.

On with timed off

Switch (led_green endpoint)

The current state of this switch is in the published state under the state_led_green property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_led_green": "ON"}, {"state_led_green": "OFF"} or {"state_led_green": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_led_green": ""}.

On with timed off

Illuminance (numeric)

Measured illuminance. Value can be found in the published state on the illuminance property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"illuminance": ""}. It's not possible to write (/set) this value. The unit of this value is lx.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Occupancy (binary)

Indicates whether the device detected occupancy. Value can be found in the published state on the occupancy property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupancy": ""}. It's not possible to write (/set) this value. If value equals true occupancy is ON, if false OFF.

CO2 (numeric)

Measured value. Value can be found in the published state on the co2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"co2": ""}. It's not possible to write (/set) this value. The unit of this value is ppm.

Noise level (numeric)

Current noise level. Value can be found in the published state on the noise_level property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"noise_level": ""}. It's not possible to write (/set) this value. The unit of this value is dBA.

Noise (binary)

Noise detected. Value can be found in the published state on the noise property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"noise": ""}. It's not possible to write (/set) this value. If value equals true noise is ON, if false OFF.

Noise threshold (numeric)

Noise detection threshold. Value can be found in the published state on the noise_threshold property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"noise_threshold": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"noise_threshold": NEW_VALUE}. The minimal value is 0 and the maximum value is 150. The unit of this value is dBA.

Noise timeout (numeric)

Time in seconds after which noise is cleared. Value can be found in the published state on the noise_timeout property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"noise_timeout": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"noise_timeout": NEW_VALUE}. The minimal value is 0 and the maximum value is 2000. The unit of this value is s.

Status led (binary)

Status LED control. Value can be found in the published state on the status_led property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"status_led": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"status_led": NEW_VALUE}. If value equals ON status led is ON, if OFF OFF.

Connectivity (enum)

Device connectivity state. Value can be found in the published state on the connectivity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"connectivity": ""}. It's not possible to write (/set) this value. The possible values are: offline, online, firmware_update, component_update.

Modbus slave id (numeric)

Device Modbus slave ID. Value can be found in the published state on the modbus_slave_id property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"modbus_slave_id": ""}. It's not possible to write (/set) this value.

Serial number (numeric)

Device serial number. Value can be found in the published state on the serial_number property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"serial_number": ""}. It's not possible to write (/set) this value.

Fw version (text)

Device firmware version. Value can be found in the published state on the fw_version property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"fw_version": ""}. It's not possible to write (/set) this value.

Fw signature (text)

Device firmware signature. Value can be found in the published state on the fw_signature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"fw_signature": ""}. It's not possible to write (/set) this value.

Boot version (text)

Device bootloader version. Value can be found in the published state on the boot_version property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"boot_version": ""}. It's not possible to write (/set) this value.

Component version (text)

Device component firmware version. Value can be found in the published state on the component_version property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"component_version": ""}. It's not possible to write (/set) this value.

Component signature (text)

Device component firmware signature. Value can be found in the published state on the component_signature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"component_signature": ""}. It's not possible to write (/set) this value.

Temperature offset (numeric)

Offset subtracted from the raw temperature reading. Value can be found in the published state on the temperature_offset property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_offset": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_offset": NEW_VALUE}. The minimal value is -10 and the maximum value is 10. The unit of this value is °C.

Occupancy level (numeric)

Raw occupancy level reported by the sensor. Value can be found in the published state on the occupancy_level property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupancy_level": ""}. It's not possible to write (/set) this value.

Occupancy sensitivity (numeric)

Occupancy detection sensitivity. Value can be found in the published state on the occupancy_sensitivity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupancy_sensitivity": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupancy_sensitivity": NEW_VALUE}. The minimal value is 0 and the maximum value is 2000.

Occupancy timeout (numeric)

Time in seconds after which occupancy is cleared. Value can be found in the published state on the occupancy_timeout property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupancy_timeout": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupancy_timeout": NEW_VALUE}. The minimal value is 0 and the maximum value is 2000. The unit of this value is s.

VOC (numeric)

Measured VOC concentration. Value can be found in the published state on the voc property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voc": ""}. It's not possible to write (/set) this value. The unit of this value is µg/m³.
