Vesternet VES-ZB-REM-013

ModelVES-ZB-REM-013
VendorVesternet
DescriptionZigbee remote control - 12 button
Exposesbattery, action, linkquality

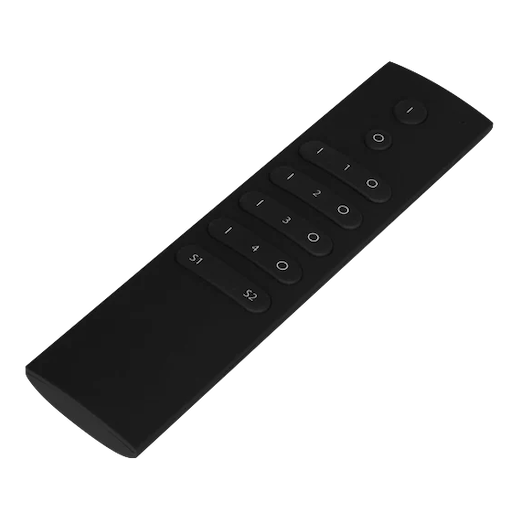

PictureVesternet VES-ZB-REM-013
White-labelSunricher SR-ZG9001K12-DIM-Z4

Options

How to use device type specific configuration

  • simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:
simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on_1, off_1, stop_1, brightness_move_up_1, brightness_move_down_1, brightness_stop_1, on_2, off_2, stop_2, brightness_move_up_2, brightness_move_down_2, brightness_stop_2, on_3, off_3, stop_3, brightness_move_up_3, brightness_move_down_3, brightness_stop_3, on_4, off_4, stop_4, brightness_move_up_4, brightness_move_down_4, brightness_stop_4, recall_1_1, recall_1_2, recall_1_3, recall_1_4, recall_2_1, recall_2_2, recall_2_3, recall_2_4.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
