BSEED _TZE284_uqfph8ah


Model	_TZE284_uqfph8ah
Vendor	BSEED

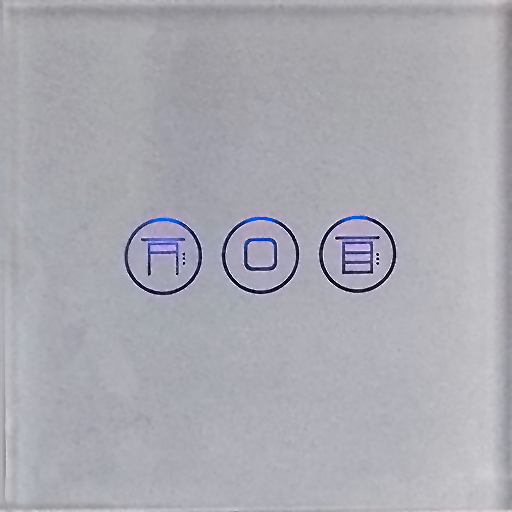

Description	Curtain/blind switch
Exposes	cover (state, position), calibration, backlight_mode, motor_steering, child_lock

Options

How to use device type specific configuration

invert_cover: Inverts the cover position, false: open=100,close=0, true: open=0,close=100 (default false). The value must be true or false

The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100.

Calibration (enum)

Calibration. Value can be found in the published state on the calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"calibration": NEW_VALUE}. The possible values are: START, END.

Backlight mode (binary)

Backlight. Value can be found in the published state on the backlight_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"backlight_mode": NEW_VALUE}. If value equals ON backlight mode is ON, if OFF OFF.

Motor steering (enum)

Motor Steering. Value can be found in the published state on the motor_steering property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motor_steering": NEW_VALUE}. The possible values are: FORWARD, BACKWARD.

Quick calibration (numeric)

Set quick calibration. Value can be found in the published state on the quick_calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"quick_calibration": NEW_VALUE}. The minimal value is 1 and the maximum value is 120. The unit of this value is s.

Indicator mode (enum)

LED indicator mode. Value can be found in the published state on the indicator_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"indicator_mode": NEW_VALUE}. The possible values are: relay, pos, none.
